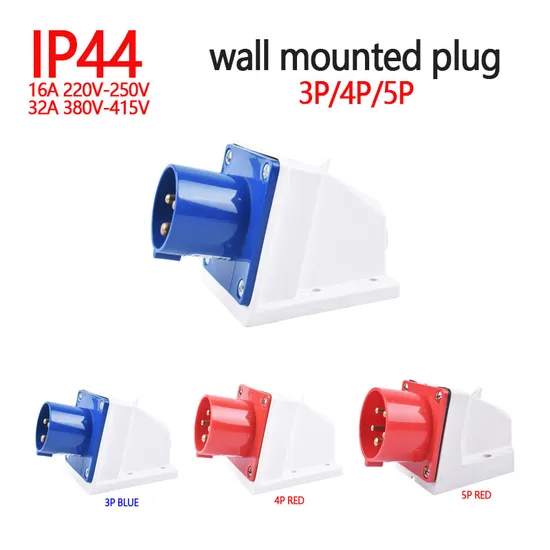

16A/32A Industrial Plugs and Sockets IP44 Power Supply Wall Mounted Plugs 3p/4p/5p

16A/32A Industrial Plugs and Sockets IP44 Power Supply Wall Mounted Plugs 3p/4p/5p

US$1.00-5.00 100 Pieces (MOQ)

Basic Info.

Model NO.
513-525
Nominal Voltage
220V-250V 380V-415V
Protection
IP44
Material
PP
Current(a)
16A/32A
Voltage(V)
220V-250V 380V-415V
Earth Contact Position
6h
Conductor
Brass
Certificates
CE RoHS CQC
Standard
European Standard, American Standard, Chinese Standard, British Standard, Germany Standard, South African Standard, Italian Standard, Swiss Standard
Function
AC Plug, Charger Plug, Plug
Shape
EP
Application
Power Supply
Interface Type
AC/DC
Certification
CE
Transport Package
Carton
Specification
2P+E 3P+E 3P+N+E
Origin
China
HS Code
8536690000
Production Capacity
200000

Packaging & Delivery

Package Size
20.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

Product Description Application:
1.Petrochemical engineering 5.Mine diggings
2.Electric power 6.Construction site
3.Railway 7.Water treatment plant
4.Airport 8. Wharf
9. Hotel
Testing & Quality Ensure
Quality is our only faith,we have a professional Research and development team and high-quality workers sparing no orts
for pursuit of perfect production.We equip with a series of inspection devices for testing and ensuring every product we
produce is perfect .
Both the quality and pe formance of our products can match the inte national standa EN/IEC60309-2 and the national
standard GB 11919-2001 Products have obtained international certifications, such as CE,ROHS,CQC,BST,etc.
Our Advantage
We ovide diffe ent series products for different envi onment.Using esh material impo ting good quality copper and on parts to make SU oduct with longer mechanical life esistance to seve weather, ageing ,alkali resistance ate proof and dust evention.
Common specifications of industrial plugs and sockets
1. According to IEC60309 (International Electrotechnical Organization Standard) and China (GB Standard), the current is divided into 16A, 32A, 63A, 125A.
2. According to the American UI standard current specifications are 20A, 30A, 60A, 100A.
3.Compatibility between various specifications
16A products of IEC and GB standards are compatible with American UL standard 20A industrial plug and socket products
IEC and GB standard 32A products are compatible with American UL standard 30A industrial plug and socket products
IEC and GB standard 63A products are compatible with American UL standard 60A industrial plug and socket products
125A products of IEC and GB standards are compatible with American UL standard 100A industrial plug and socket products
Standard difference between product color and voltage
1. Blue indicates that the voltage is 230V.
2. Red indicates that the voltage is 400V.
3, the whole body of white products means 50V ultra-low voltage products.
4.Purple products represent 20V ultra-low voltage products
Product pole number labeling and meaning
1, 3P (2P + E) in English means 3Pole or Single Phase means fire line + neutral line + ground line
2. 4P (3P + E) in English means 4Pole or 3Phase, which means three fire wires + ground
3. 5P (3P + N + E) in English means 5Pole or 3Phase, which means three live wires + neutral + ground
Industrial plugs and sockets are dust-proof, waterproof, splash-proof, corrosion-proof, error-proof, drop-proof, flame-resistant, high-temperature-resistant, and anti-aging. The main contact parts are H59-1 copper. The color of the shell indicates different voltages and frequencies, and the positions, diameters, and number of poles of different connectors are different to prevent mis-insertion.
Industrial plug and socket selection
