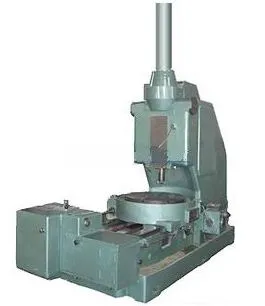

Gear Cutter Machine, Gear Shaper Machine
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
gear shaping machine
Type
Tool Milling Machine, Gear Shaping Machine
Object
Gear
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Manul
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001, CE, ISO9001
Condition
New
CNC or Not
Normal
Voltage
380V
After-Sales Service
Yes
Color
as Custom
Packing
Plywood Case
Transport Package
Standard Export
Specification
DIFFERENT
Trademark
OMAR MACHINE
Origin
China
HS Code
8461409000
Production Capacity
5000
Product Description
GEAR SHAPING MACHINE, GEAR SHAPER, GEAR CUTTING MACHINEMain technical specifications
| Maximum Processing diameter | Outer gear | 800mm | Max. modulus | 12 mm | |||||||
| Inner gear | 1000 mm | ||||||||||
| Maximum processing workpiece width(Teeth width) | 200 mm | ||||||||||
| The time of strokes(The spindle of shaping cutter) | 25,45,60,75,100,125,150times/minute | ||||||||||
| The Circle(Round) feedings | 0.17~1.5mm | Radial feedings | 0.03~0.57mm | ||||||||
| The dia. Of worktable | 800mm | Power of quick motor | 1.1kw | ||||||||
| The power of main motor | 7.5kw | Power of cooling motor | 0.15kw | ||||||||
| Machine weight | 11600KGS | Overall Size (L×W×H) | 3552×1763×3792 mm | ||||||||
