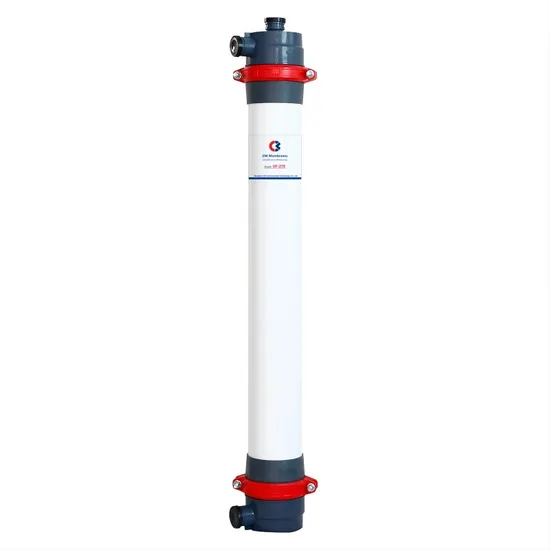

55m2 Ultrafilation UF Membrane Water Filter System UF-219

Product Description

Product Description Ultrafiltration (UF) is a separation principle for screening, with pressure as the driving force to realize mechanical separation membrane separation process,namely under certain pressure , when the mixed solution of large molecules or a small molecule solute through the membrane surface, solvent (e .g.,inorganic salt) and small molecule solutes through the membrane, and the solute molecules due to mechanical filtration membrane as concentrate intercept.To achieve the purpose of purification, separation and concentration.
Hollow fiber ultrafiltration membrane is an important form of separation membrane . The membrane pores are capillary and the micropores are located on the wall of the tube.The solution is based on whether its components can be purified, separated and concentrated through these micropores .Among the membrane components per unit volume,hollow fiber membrane has the largest effective area , high filtration and separation efficiency ,easy cleaning , simple structure , easy operation and low price .The production process does not produce secondary pollution, so it is widely used.

Detailed Photos
Product Parameters Ultra filtration Module UF-PES-219(55)

Performance (for most feed waters)
Filtrate Flow	3-6 m3/h
Filtrate Turbidity	≤0.1 NTU
Filtrate SDI15	≤3
Type Configuration:Capillary Ultra filtration Module
Membrane Polymer	PES/PVP
Nominal Membrane Area	55 m2
Nominal pore size	0.02 μm
Fiber Dimensions	ID 0.8 mm
Diameter of cylinder part	219 mm
Application Date(for General use)
Typical Filtrate Flux Range	60-120 L/m2/h
Maximum Applied Feed Pressure	0.5 Mpa
Maximum Tran membrane Pressure	0.3 Mpa
Maximum Backwash Pressure	0.3 Mpa
Operating Temperature Range	5-40 ºC
PH Operating Range	2-12
Operating Module	InsidetoOutsideFiltration
TypicalProcessConditions
BackwashFlux	250-300L/m2/h
BackwashDuration	30-60seconds
BackFrequency	20-60minutes
Cleaningchemicalresistance
SodiumHypochlorite	Typical200ppm,Maximum500ppm 250000ppmhourscumulative

Model	Membrane Material	Lateral Centerdistance L1 (mm)	Module Dimensions	Effective Membrane Area	Desigen flux (for most feed waters) [m3/0.1Mpa 25ºC]	Nominal Proe Size
UF-90	PES	910	φ90×1100	4.5	50-80L (L/m2•h)	0.01um
UF-160		990	φ160×1330	20
UF-200		1000	φ200×1415	25
UF-225		1600	φ225×1730	40
UF-225L		1630	φ225×1760	40
UF-250		1600	φ250×1715	50
UF-273			φ273×1830	80
UF-219		1742	φ219×1902	40
UF-315		780	φ315×1302	55
UF-315L		1300	φ315×1822	80
UF-4040		---	φ90×1010	4
UF-8040		---	φ200×1010	20
UF-8060		---	φ200×1527	45
UF-90	PAN	910	φ90×1100	4	60L-120L (L/m2•h)	0.02um
UF-160		990	φ160×1330	10
UF-200		1000	φ200×1415	18
UF-225		1600	φ225×1730	30
UF-225L		1630	φ225×1760	30
UF-250		1600	φ250×1715	35
UF-4040		---	φ90×1010	3.5
UF-8040		---	φ200×1010	15
