Low Cost Price 360 Full Automatic Touchless Car Wash Machine Price Automatic Car Wash Machine

Product Description

Product Description
1.This car washing machine is suitable for the car, jeep, and minibus to high pressure water washing, wax and drying. Can
identify the car model with photoelectric sensor controlled by CPU.
2.Introduce advanced technology from Italy, European type stream line design ,not only good look but also with reliable safety.
3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.
4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times.
Inclinable side brush strengthens cleaning ability around the car.
5.The dovetail foam brush makes the car washing more quiet and clean.
6.Main components from world famous manufacturers ,high reliability ,long using life.
7.Fault Self-detect function.
8.Three function(Car wash, Inspection and management)to an operation panel
9.Automatic control and multi-function operation ,such as washing ,drying and wax.
10.Dried by four sets offans and car shape imitating dry system.
11.Long durable time: more than 10 years
Product Parameters

Machine Size :	11000*4000*3000MM (L*W*H)
Washing Car Size:	5300*2000*2200MM (L*W*H)
Wash for	Cars, mini bus, pickup,SUV,MVP
Washing Speed:	1-2 minutes/car
Water Consumption:	150-200 liter/car
Power Consumption:	0.5 kwh/car
Power Supply:	380 V, 50 HZ, 3 phases
Equipment Moving Speed:	10.5 meter/min
Install Size:	12500*4500*3500MM (L*W*H)
Foundation Size:	13000*4500*3500MM (L*W*H)
Brush:	One top brush Four side brushesFour small side brushes
Contouring dryer	Four blowers, 12KW
Total Power:	30KW
Water supply	DN25mm/Waterflow rate≥80L/min
Air pressure	0.75-0.9Mpa/Airflow rate≥0.1m³/min
Shampoo consumption	7ml/Car
Water wax consumption	12ml/Car

Product Details
Our Advantages 1. Chassis and tires Blasting Cars get dirty and muddy on muddy road or rainy seasons. The dirt may cause harm to car, so better to clean them
to protect car and make our driving safer. Special functions of chassis spraying and fan shaped tires & rims blasting,
high pressure at 80kg sprays to clean dirt on chassis, two sides and tires.

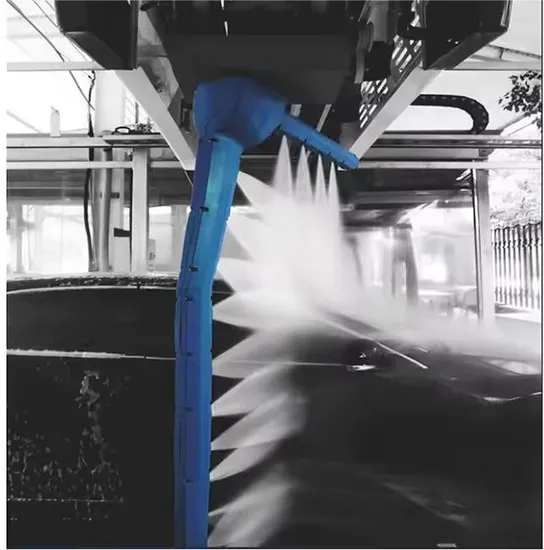

2. 360 degree rotating arm to spray high pressure water and detergents
Rotating arm is designed as car body contour, 360 degree spraying water and detergents at average speed, pressure
and distance. Can cleaning car at maximum angle. Only 28 seconds for one round, water-saving more than 50%,
electricity-saving more than 60%.
3. 360 degree rotating arm spraying detergent
Rotating arm can spray water and kinds of detergents. Innovative foggy spraying, make the best of detergent, saving up to 80%.
4. Forming
Forming is a further step to deal with dirt on car body, to reach good washing effect. No hand work rub to avoid even little
damage to car paint. Obvious visual washing effect to give clients strong impression.
5. Liquid waxing
Liquid wax has two functions. First, to make car body look shinny and polishing; besides, as its characteristics of water-repelling, benefiting good drying effect for function of drying.
6. Special in-built swift dryer (drying up in 50 seconds)
Special in built swift dryer, with big circle air guide, to keep air pressure to blow high enough air pressure onto car body
to reach good drying effect for SUV or even sport cars. Drying system include 3 5.5KW and one 5.5KW motor, built in crown block, swift air flow is the best to dry car body up.
Packaging & Shipping
FAQ
Q1:What kind of certificate you have?
A:ISO9001 Certification, CE Certification. Manufacture license of special equipment.
Q2:Do you support customized products?
A:Sure, we can produce the customized products per your drawings and other requirements.
Q3:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit The specific delivery time depends on the items and the quantity of your order.
Q4:How about the trading term and payment term?
A:We can discuss this individually.
Q5:How about the warranty term?
A:1 year warranty,offer FREE components under EXW shipped term.
Q6. What is your MOQ?
A: We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost
will be charged if delivered in LCL way.
Q7. Do you provide OEM service?
A:Yes, we do provide OEM service. However, we will require minimum 500 units vehicles yearly for OEM project.
