Automatic Rapier Sample Loom used for sample weaving of all kinds of fabrics

Automatic Rapier Sample Loom used for sample weaving of all kinds of fabrics

Product Description

Product Description

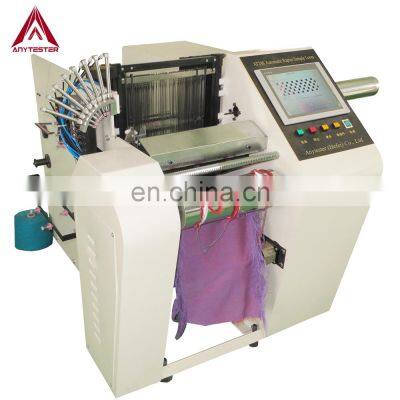

Product DescriptionAT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.Specification Model AT248Reed width 12inches (16, 20, and 24inch, optional)Yarn linear density range5~500texWeft density30~45weft/min, selectableNo. of heald frame4~20Color selection8 color, automatic pneumatic control Let-offActive electronic control Take-upMotor controlShedding Dobby shedding, pneumatic controlBeating-upMotor control Air pressure0.45~0.8MpaAir consumptionMax. 200L/minPowerA220V 50Hz, single-phaseDetailed Images ★Designable and editable patterns and USB interface to share designed patters; ★Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns; ★Heald frames up to 20pcs, easy to mount and dismount;★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;★Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;★ Automatic pneumatic selection of weft yarns up to 8 colors; ★Professional software for designing or editing patterns;★PLC control touch screen with 2G memory capacity to store designed patterns; Packing & DeliveryPackagingSize(cm)140(L) * 180(W) * 180 (D)Weight200KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment ItemT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)CIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerRelated ProductsOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us Lily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820
