25-75m3/H Small Mini Portable Ready Mixed Mobile Cement Concrete Batching Mxing Plant Factory Price in The Philippines

Product Description

Product Description

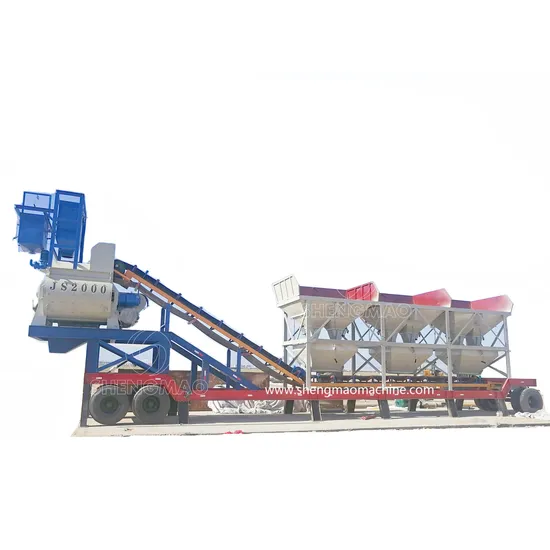

Mobile concrete batching plant

Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have is from 20m³/h to 120m³/h. Welcome to contact us for details and quotations.

YHZM series of mobile concrete batching plant
Features: 1. No need to make concrete foundation, easy to install and move to other job sites;
2. the mixer is drum mixer;
3. the cement silo is mobile;
4. the discharging height is 1.3m. In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.

YHZM series of mobile concrete batching plant
Model	YHZM20	YHZM30	YHZM60	YHZM100
Production capacity (m3/h)	20	30	60	100
Concrete mixer (drum mixer)	JZM500	JZM750	JZM1500	JZM2000
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate Batcher	PLD800	PLD1200	PLD2400	PLD3200
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1.1	1.3	1.3	1.3
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Computer	Computer	Computer	Computer
Total power (kw)	42	46	67.5	77.5
Total weight(T)	12	13	16	26

NYHZS series of mobile concrete batching plant
Features: 1. No need to make concrete foundation, easy to install and move to other jobsites;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is mobile;
4. the discharging height is 1m; In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.

NYHZS series of mobile concrete batching plant
Model	NYHZS25	NYHZS35	NYHZS50	NYHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer (twin-shaft mixer)	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1	1	1	1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	61	76	85	95
Total weight(T)	13	15	19	22

Title goes here.
Features: 1. we need to make concrete foundation;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is stationary, we need to make huge concrete foundation;
4. the discharging height is 4.1m;

YHZS series of mobile concrete batching plant
Model	YHZS25	YHZS35	YHZS50	YHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer (twin-shaft mixer)	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	60	72	92	102
Total weight (T)	14	22	26	29

Certifications

Detailed Picture and Specification

Our projects
Packing&Shipping
The main parts of the main are usually put into containers and fixed and fastened by steel wire. accessories are usually packed with carton boxes or wooden box.
Our Services
Pre-sale Service 1. Answering customers' questions, helping customers choose the most suitable machines;
2. Making design drawings as per customers' requirements;
3. Providing quotations. In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance. After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
Company Profile

Henan Shengmao Machinery Co., Ltd., founded in 2001, is located in Xingyang, Zhengzhou, Henan. Mainly engaged in the development, production, and sales of construction machinery. It covers an area of 80,000 m2 and has more than 700 employees, including 45 engineers, 80 professionals, 56 sales, and more than 500 technicians.
The main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw conveyor, brick making machine, and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, Argentina, etc.
