Injection Molded Cable Tie Holder Clips
| US$15,000.00-18,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-140
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
Discover our Injection Molded Cable Tie Holder Clips for efficient cable management solutions. Perfect for industrial use, these durable clips offer secure mounting options.
Product Description:

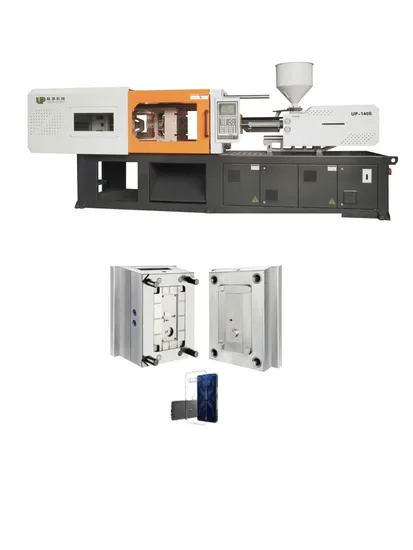

Ningbo Union Power Machinery Co., Ltd. - China Servo Injection Molding Machine
This China servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. offers advanced features for precise and efficient molding processes. Key specifications include:
Modulus of Capacitance: Ensures accurate positioning, size, and maximum allowable modulus of capacitance, along with minimum closure thickness of the guide pillar.
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Features code mold hole and slot size for seamless molding operations.
Ejection Mechanism: Provides details on ejection point position, ejector rod diameter, ejection force, and stroke for efficient mold ejection.
Mold Opening Stroke: Offers precise mold opening stroke and maximum opening distance for enhanced molding capabilities.
Experience superior molding efficiency and accuracy with this high-quality servo injection molding machine from Ningbo Union Power Machinery Co., Ltd.
| Technical Parameters | Model UP-140T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 38 | 42 | 45 |
| Shot Volume (cm3) | 215 | 260 | 302 |
| Injection weight (g) | 194 | 237 | 272 |
| injection pressure (Mpa) | 186 | 152 | 132 |
| Screw speed (rmp) | 215 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1400 | ||
| Open stroke (mm) | 380 | ||
| Max Mold height (mm) | 450 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 420*420 | ||
| Ejector force (KN) | 46 | ||
| Ejector stroke (mm) | 120 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 13(14) | ||
| Heating power (KW) | 8.2 | ||
| Machine dimension (M) | 4.2*1.2*1.9 | ||
| Machine weight (T) | 3.4 | ||
| Oiltank cubage (L) | 190 | ||
