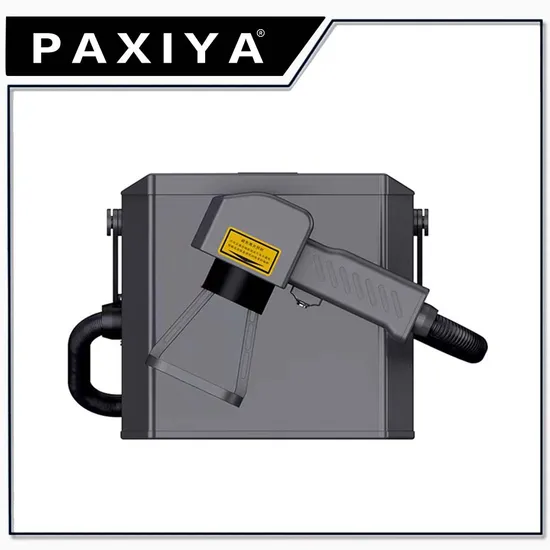

Fiber Portable Handheld Laser Marking Machine, Metal Plastic Fiber Laser Marking Machine

Product Description

Laser Marking Machine Expiry Date Batch Code Laser Printer for Plastic Bags Cable Wire Pet Bottle
Fiber laser marking machine can work with most metalmarking applications, such as Gold, Silver, Stainless Steel,Brass,Aluminium,Steel, lron etc. and can also mark on many non-metalmaterials,such as ABS,NylOn, PES, PVC, Makrolon.
Product Parameters

Machine Material	Sandblasted anodized aluminum structure
Laser Type	Fiber laser, lifespan >100,000 hours
Laser Wavelength	1064nm
Actual Output Power	≥20W,≥30W
Marking Speed	≤12,000mm/s
Main Controller	8-inch touch controller
Cooling System	Air-cooled at room temperature
Minimum Line Width	0.0012mm
Repeat Positioning Accuracy	0.003mm
Marking Area	75mm×75mm or 120×75mm (customizable)
Positioning Method	Red light indication
Character Line Count	Any number of lines within the marking area
Production Line Speed	0~130m/min (depends on material)
Languages Supported	English, French, Spanish, German, Chinese, Russian, etc.
User Management Permissions	Multi-user management permissions
Operating System	Linux system
Marking Modes	Static, dynamic, encoder modes
Reserved Signals	Start print, print status, print complete, fault alarm
Data Protection	Power loss data protection
Missed Print Detection	Over-speed alarm due to material reflection
Cross Point Removal	Automatically removes cross points to avoid overlapping points
Code Generation Software	Supports single and dual machine code generation
Fonts	Chinese, English, numbers, traditional characters, etc.
File Formats	BMP/DXF/HPGL/JPEG/PLT
Barcodes	CODE39, CODE128, CODE126, QR, DataMatrix (optional)
Power Supply	Standard: External 220V/50Hz power supply
Power Consumption	200W
Net Weight	Cabinet: 7kg, Head: 1.25kg, Total weight after packaging: 8.25kg
Dimensions	Cabinet: 270155245mm, Head: 240100230mm, Packaging box: 470410360mm
Battery Endurance	Optional: Built-in battery: 12000mA, Normal usage time 12-16 hours
Temperature	0ºC - 45ºC
Humidity	≤95%, non-condensing
Vibration	No vibration

Product Details & Features
Our laser marking machine combines powerful performance with convenience, ideal for a variety of industrial applications:
Efficient Battery Design: Optional 24V lithium battery (12AH) ensures 12-16 hours of continuous operation, minimizing downtime. Versatile Design: Offers portable, desktop, and flying models (optional), perfect for diverse work environments. Powerful System: Equipped with an 8-core processor and Linux system for stable performance, fast response, and high security. Compact and Ergonomic: Full aluminum body, weighing just 8.25kg (marking head 1.25kg), designed for comfort and ease of use. Built with precision and backed by strong technical expertise, our machine delivers efficiency, reliability, and quality for your production line.
Choose us for a smarter, more efficient solution.
Application Scenario Display

Packaging & Shipping
Our products are carefully packed to ensure safe transportation and delivery.
Packaging Details: Each machine is packed in a sturdy carton box with protective pearl foam inside to prevent any impact damage during transit. Carton Dimensions: 50*40*40cm Weight per Carton: 10kg Packing Unit: One machine per carton Shipping Methods: We support sea freight, air freight, and land transportation based on customer requirements. Additional Protection: For enhanced safety, we offer wooden crate packaging upon request to provide extra protection during long-distance or fragile shipments. We ensure all products are securely packed to arrive at their destination in perfect condition.
After Sales Service
We offer a comprehensive after-sales service to ensure the continued performance of your machine. Our commitment includes:
1-Year Warranty: We provide free repairs for any damaged parts within the first year of use. 24/7 Customer Support: Our professional support team is available online 24 hours a day to assist with any issues or questions. Engineer Installation and Training: We offer detailed installation guides and training tutorials to help you get the most out of your machine. Your satisfaction and machine performance are our top priorities.
OEM&ODM Services
We offer exclusive brand customization, including logos, languages, and startup screens-making it easier for you to stand out in the market.



Why Choose Our Products
Paxiya inkjet Technology (Foshan) Co., Ltd was founded in 2003. We focus on providing top-quality continuous inkjet printer,thermal inkjet printer,handheld inkjet printer,laser makring machine,ink cartridge globally.We are committed to providing professional solutions for the marking of a wide range of materials, including but not limited to cartons, food packaging, pharmaceutical packaging, electronic components, plastic bottles, glass bottles, cables, metal parts, aluminum and more,Welcome inquiries!
FAQ
Q1: What can laser marking machine carve?
A1:It can carve all kinds of metal and some non-metal, metal alloy materials, plastic,rubber, leather and other materials
Q2: How should I get more videos or details of laser marking machine if I need them?
A2: You can get more information from our .customer service.

Q3:What if I have a technical problem of laser marking machine ?
A3:24 hours online after-sales, /no matter you seek help at any place, any time, we can respond quickly

Q4:Can it meet the needs of assembly line?
A4:Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc

Q5:What are the types of lettering and patterns?
A5:Engraving pattern, text, datmatrix QR code, serial number, counter, date, shift, variable, etc
