Jushi Brand BMC 3mm 5mm 6mm 12mm E Glass Chopped Strands

Jushi Brand BMC 3mm 5mm 6mm 12mm E Glass Chopped Strands

US$1.00-5.00 100 kg (MOQ)

Basic Info.

Model NO.
PLM-CS2140
Yarn Structure
Single Yarn
Surface Treatment
Vinyl Coated
Fiberglass Type
E-Glass
Transport Package
Box and Pallet
Specification
100% E-glass
Trademark
PLM
Origin
China
Production Capacity
20000 Meter Per Day

Packaging & Delivery

Package Size
20.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

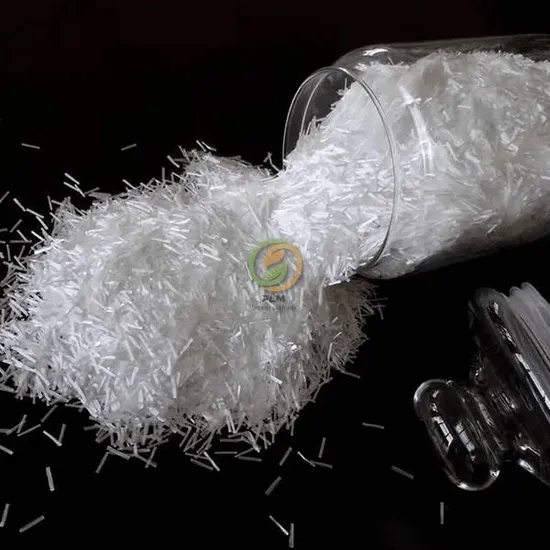

Chopped Strands are produced by cutting strand bundles, which are made of 50 to 200 fine ARG fiber filaments, into various length. It is used as reinforcement for Glassfiber Reinforced Concrete (GRC), Calcium Silicate and Slag Gypsum products. It is also used as crack control material for normal concrete and cement mortar. Its high alkali and acid resistance can be applied to glass fiber papers and filter
Chopped Strands are made by bundling thousands of E-glass fiber together and chopping them into specified length. They are coated by original surface treatment designed for each resin to increase the strength and physical properties. Chopped Strands are used in combination with high-performance resin with a certain content, applied to FRP (Fiber Reinforced Plastics) and FRTP (Fiber Reinforced Thermo Plastics) for automobiles and electronics as reinforcing materials globally.
Product Lsit
Item No.
Chop Length,mm
Features
Typical Application
BH-01
12,18
Excellent dispersion and good mechanical properties of composite products
Reinforced gypsum
Identification
Type of Glass
E6
Chopped Strands
CS
Filament Diameter,μm
16
Chop Length,mm
12,18
Sizing Code
BH-Wet CS
Technical Parameters
Filament Diameter (%)
Moisture Content (%)
Size Content (%)
Chop length (mm)
Choppability (%)
ISO1888
ISO3344
ISO1887
Q/BH J0361
Q/BH J0362
±10
10.0 ± 2.0
0.10 ± 0.05
±1.5
≥ 99
FOR BMC
Short Description:1.Secially designed for reinforcing unsaturated polyester, epoxy resin and phenolic resins.
2.Widely used in transportation, construction, electronics,chemical industry and light industry. Such as the automotive parts, insulator and switch boxes.E-Glass Chopped Strands for BMC are specially designed for reinforcing unsaturated polyester, epoxy resin and phenolic resins.
Features
Good strand integrity
Low static and fuzz
Fast and uniform distribution in resins
Excellent mechanical and processing properties
BMC Process
A bulk molding compound is made by combining glass chopped strands, resin, filler, catalyst and other additives, This compound is processed by compression molding or injection molding to form the finished composite parts
Product List
Item No.
Chop Length,mm
Features
Typical Application
BH-01
3,4.5,6,12,25
High impact strength, high LOI rate
Automotive parts, civilian electrical switches, electric tools, artificial marble platform boards and other products requiring high strength
BH-02
3,4.5,6,12,25
Suitable for the dry mixing processing, high
strand integrity High strand stiffness,
compatible with rubber
Friction materials, Products with superior friction coefficiency, including tires
BH-03
3,4.5,6
Extremely low resin demand, delivering
low viscosity to BMC paste
High fiberglass content products with complex structure and superior color, e.g., ceiling, artificial marble platform boards and lampshades
Identification
Type of Glass
E
Chopped Strands
CS
Filament Diameter,μm
13
Chop Length,mm
3,4.5,6,12,18,25
Sizing Code
BH-BMC
Technical Parameters
Filament Diameter (%)
Moisture Content (%)
LOI Content (%)
Chop length (mm)
ISO1888
ISO3344
ISO1887
Q/BH J0361
±10
≤0.10
0.85±0.15
±1.0
