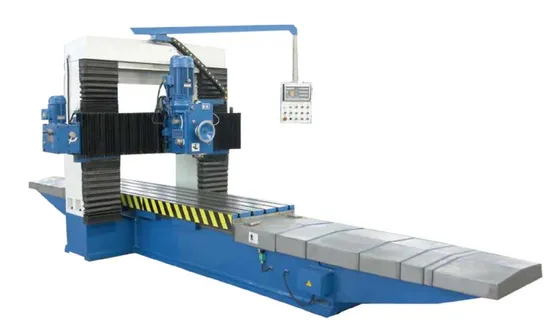

Gantry-Type Milling Machine X2008 with Dro with 35° Swivel Angle Milling Head

Product Description

Gantry-Type Milling Machine X2008

Air tight cover
With DRO
Pneumatic tool locking mechanism
Specification:

Model No.	X2008
Item No.
Specifications
Max travel (LxWxH)	2000/3000 x1100x800 mm
Distance between columns	1140 mm
Table size(LxW)	2000/3000x800 mm
Table feeding speed(Feed Rapid travel)	Infinite 1400
Spindle
Spindle taper	7:24 ISO50
Spindle speed step	82-505 r/min
Swivel angle of milling head	± 35°
Feed speed of milling head	65/320/890 mm/min
Milling head travel	350 mm
Other
Power of spindle motor	7.5 kw
Power of table motor	4 kw
Overall size(LxWxH)	4000/6000x3000x2300 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
