Automatic Lifting System Mechanical Transmission Radial Bench Drilling Machine for Metal Radial Drilling Machine Z3050*16

Product Description

Product Description
High-Performance Drilling Capability: The FindMC Z3050x16/1 Automatic Radial Drilling Machine is designed for efficient drilling operations in various industries, including building material shops, machinery repair shops, construction works, and energy & mining. It can drill up to 50mm in diameter with a range of spindle speeds from 25 to 2000 r.p.m. Competitive Pricing: This product offers a competitive price, making it an attractive option for businesses looking to upgrade their drilling capabilities without breaking the bank. As per the user's request for cost-effective solutions. Reliability and Warranty: The machine comes with a 1-year warranty on core components, providing peace of mind for users. This warranty also includes the motor, ensuring that the machine operates smoothly and efficiently. Advanced Features: The Z3050x16/1 features automatic spindle feed, a swivel angle of +/-180 degrees, and a horizontal travel of spindle head on arm of 1250mm, making it a versatile drilling machine for various applications. Comprehensive Support: FindMC provides a machinery test report and video outgoing-inspection to ensure the machine's quality and functionality. This comprehensive support provides users with confidence in their purchasing decision. Product Parameters

Radial drilling machine specifications	Units	Z3050×16/1
Max. drilling diameter	mm	50
Distance between spindle axis and column	mm	350-1600
Distance spindle nose and working surface of base	mm	320-1220
Spindle travel	mm	315
Spindle taper	Morse No.	5#
Range of spindle speeds	rpm	25-2000
Number of spindle speeds	step	16
Range of spindle feeds	mm/r	0.04-3.20
Number of spindle feeds	step	16
Table size	mm	630×500
Distance of headstock horizontal movement	mm	1260
Spindle motor power	KW	4
Spindle motor power	Kg	3300
Overall dimension	mm	2500×1070×2840

Name	Specification	Qty	Remark
Radial drilling machine	Z3050×16/1	1	Elevating motor was dismantled, it need to be installed by user.
Table	630×500×500	1	It is on the base of the machine.
Hexagon nut	M24	12 pcs	There are 5 pieces on the machine.
Foundation bolt	M24×450	6 pcs
T-slot bolt	M24	6 pcs	There are 5 pieces on the machine.
Washer	24	12 pcs	There are 5 pieces on the machine.

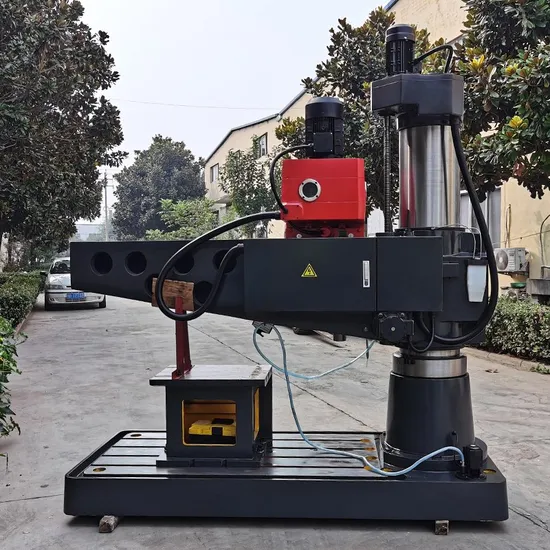

Detailed Photos
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive industrial and trade enterprise in China who is specialized in metal cutting machinery and tools,coming with self import and export rights.
Shandong Vedon Intelligent Equipment Co., Ltd. supply a wide range of products and service to its global customers, including vertical machining center, milling machine, radial drilling machine, vertical drilling machine, lathe, CNC lathe, HSS&TCT annular cutter, magnetic drill machine, band saw machine and non-sparking tools etc... They are widely sold to more than 50 countries and areas in Europe,America, and Aisa, relying on the reliable product quality, reasonable price and good after-sales service system.
Shandong Vedon Intelligent Equipment Co., Ltd. follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients.
Here we sincerely hope to cooperate with you and create a bright future.
Our Advantages
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
