Factory Xm120f Professional Milling Machine Cold Planer Road Milling Machine for Sale

Product Description

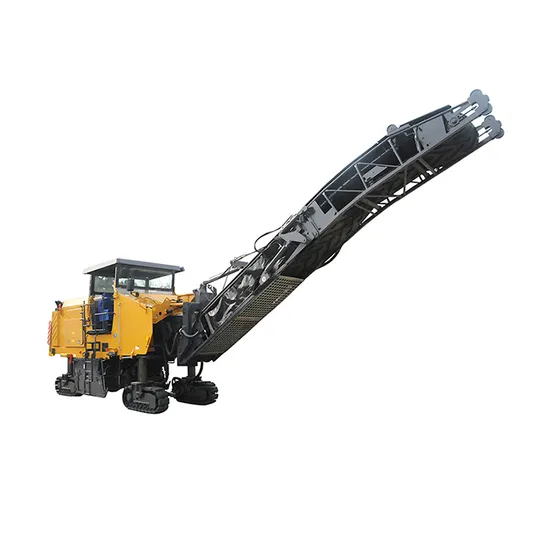

Factory XM120F Professional milling machine cold planer road milling machine for sale
Product Description

XM120F milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness. The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Detailed Photos
Product Parameters

MODEL		Unit	XM120F
Engine	Engine model		QSC8.3
	Rated power /speed	Kw/rpm	209/2100
Performance parameters	Operating speed	m/min	0-32
	Travel speed	Km/h	0-5
	Gradeability	%	80
	Ground clearance	mm	≤300
	Operating weight	Kg	21500
parameters	Max.milling and mixing width	mm	1200
	Max.milling and mixing depth	mm	320
	Number of tools		117
	Milling drum diameter	mm	980
	complete dimension(L*W*H)	mm	5900*2140*3000
dimensions	Conveyor(L*W*H)	mm	8200*1200*1500
	Fuel tank	L	660
	Hydraulic oil tank	L	120
	Water tank	L	1400
