CNC machine controller EthCAT bus protocol or pulse control Six axis

Product Description

SZGH880TC Durable Advanced Turning Two Axis Absolute Value Lathe Cutting Control Servo Turning Center Router System CNC PLC Motor DSP Controller
SZGH-880Tc New launch CNC Controller Kit For Lathe,Turning, High precision: 17bits/23-bit absolute encoder support is economic type Lathe CNC Controller , with 8.4 inches true color display(800x600) ,
2 analog spindle ,2ms interpolation in high speed, support ATC, PLC and macro, dual spindle control support function.
which obviously maximize machining accuracy, improve the efficiency, precision and surface ,quality of parts processing. Product description

Display	8.4" TFT800x600 true color LCD
Interface	USB and micro SD card interface support
Support	Grating ruler signal feedback,Various tool magazine types such as disc, bamboo hat, servo, etc, and can be customized edited according to cutsomer's request
Basic I/O	56*32
Function	Support Macro function, PLC ladder function, and 3D teaching function, ATC(Linear),17-bit, 23-bit absolute encoder support
After Warranty	Video technical supports , Online supports

Products function
1.Cortex-A8+Fpga platform, main frequency 1GHz, 0.5ms interpolation cycle, 0.1um control accuracy;
2. Linux operating system, USB and micro SD card interface support, realize mass program DNC processing;
3. Yaskawa M-II bus protocol, optional EthCAT bus protocol or pulse control;
4. Open built-in PLC, ladder diagram online editing display, signal diagnosis, signal tracking;
5. Real-time graphic display of machining tool trajectory, full diagnosis, alarm interface, real-time monitoring;
6.Class B macro instruction programming, macro program call with parameters support;
7.cSupport secondary development of display interface, can customize various macro variables;
8. C tool compensation, PMC axis interpolation, automatic chip breaking and various compound cycle functions support;
9. Support for various tool magazine types such as disc, bamboo hat, servo, etc.;
Support grating ruler signal feedback function;
10. 2-way 0~10v analog voltage output, dual spindle control support;
11. Can turn various threads, thread tail length, thread cutting angle can be set;
12. Automatic chamfering function, automatic repeated feeding, conditional waiting and other special functions;
Unlimited electronic gear function.
13. Open clock function, piece counting timing function, the use time permission can be set when the equipment leaves the factory;
14.Large program capacity: 240M bytes, 1000 processing programs storage support;

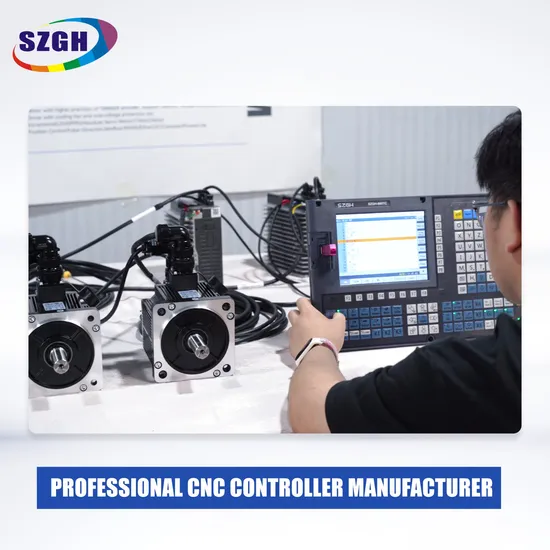

Detailed Photos
CNC Total Solution

CNC controller	1)Economic2)Standard&Modbus type 3) Asbolutely type , 4)EthCAT bus protocol or pulse control 5)Dual spindle control support 6)Support grating ruler signal feedback function 7)Reverse clearance and pitch compensation function maximize machining accuracy;
AC servo motor	1)2500PPR encoder 2) 17bits,23bit encoder
Servo driver	1)Incremental 2)absolutely3) Ethercat and modbus AC spindle servo motor and drivers Spare part: MPG, IO board, rotary encoder

Related prodcuts
Applications
CNC Lathe Machinery,CNC Turning Center,Grinding Machine and specially automatic equipment
