Double Color Strip Film Extruder

Product Description

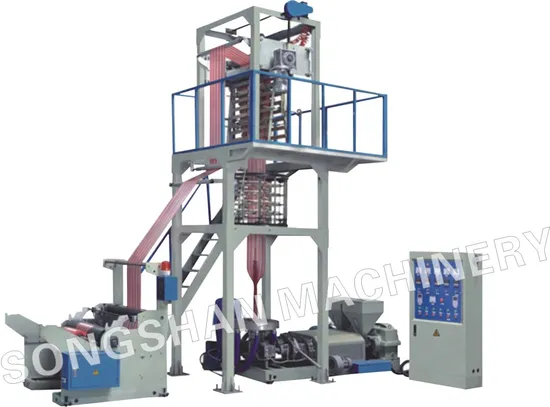

1. The Machine(Double Color Film Blowing Machine)
The Film blowing machine is used to blow the molten LDPE, HDPE and LLDPE into bubble film. Its products are widely used to pack fruit, food, clothes, textile, daily necessities and other industrial products. 2. Main Technical Variable:

MODEL	Screw Diameter	Motor capacity	Film width	Air Blower	Roller width	Output
SJDC-40	40x2	11KWx2	500mm	2.2KW×2	600mm	35kg/h
SJDC-45	45×2	15KW×2	600mm	2.2KW×2	700mm	45kg/h
SJDC-55	55x2	18.5KWx2	1200mm	3KW×2	1400mm	70kg/h

3. More Detailed Pictures
Based on Zhejiang, we face the whole country, and approach to the world.
General features:
Model: SJDC-40
Film width: 100-500mm
Output capacity: around 35kg/h Note: output depends on film width/thickness etc
Power supply: 380V three phase; 50Hz
Raw Material: HDPE/LDPE/LLDPE
Dimension (L*W*H): 4200mm*3000mm*4000mm
Weight: About 1400kg

Extruder unit:
Main motor power: 11kw two sets
Screw diameter: 40mm two pieces
Screw L/D ratio of screw: 28:1
Speed of screw: 5-100rpm
Barrel cooling: 1/6 Hp cooling blower
Film thickness: 0.008-0.15mm
Gear Box: model 133
Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
Heaters: stainless heaters and cast aluminum heaters
Heating capacity: 7.5kw
Fixed inflation head
Inflation Die: 60mm
Cooling air blower: 2.2kw
Aluminum Alloy air ring x 1 set (6 air inlet hose)

Take up unit
Film bubble taking up motor: 0.75kw
Steel roller/rubber roller length: 700mm
Take up embossing rollers: 165mm diameter*700mm (L)
Embossing rollers open and close controlled by air cylinder
Guiding roller: 2pcs
Wooden plank bubble supports and A-frame with Gusset device
Tower's height adjusted by motor-rise and fall type
Film taking off speed: 5-40m/min
Film bubble size sensor installed; automatically give more air if bubble size becomes smaller
Ladder and walking board width: 60cm

Single winding station
Winding type: by fraction
Winding motor: 5N/M torque motor
Torque motor controlled by speed adjuster, easy for operation
Friction metal/rubber roller: 220mm diameter*700mm (L)
Maximum winding diameter: 600mm
Shaft for film roll changing: 2pcs

Control Panel
1. Temperature of barrel and die head controlled by digital temperature controller
2. Inverter controls main motor driving speed and film taking up motor running speed
3. Electronics used are all Chinese top brand
4. Current meters and Voltage meters show the working state of motors
5). Small fan installed to avoid high temperature caused by long time running
4. High-quality Machines
Ruian Songshan Machinery is studying and adopting international standards and industry-leading technology to create high-quality film blowing machine and high-speed bag making machine, and flying high around the world with "integrity, responsibility, innovation and dedication".
5. Workshop& Warehouse
Ruian Songshan Plastic Machinery Co., Ltd. Was founded in 1995, located in beautiful scenery city-Rui'an near east sea. With mature technologies and abundant manufacturing experiences, Songshan is a qualified plastic machinery manufacturer that specializes in making all kinds of sealing & cutting machine, all kinds of blown film extruder and all kinds of plastic recycling machine. It is integrated manufacture, sales and after sales.
6. Delivery& Package
With advanced technologies, good quality and perfect after-sales service, our all products are far distributed to Russia, Iran, India, Malaysia, South Africa, Indonesia, and Algeria and so on.
7. After Service
Delivery Date: 30 days after deposit
Guarantee: One year. (Also, we will offer you our best after service after one year warranty period as you will afford our technician's cost which includes his visa, air ticket, hotel, food and also their salary USD80 per day per person.)
8.The quality creates the brand.
Since "Songshan" establishment, it has become one of the most advanced plastic machinery manufacturer in Zhejiang. We place great emphasis on research and development and search for new and better way to improve our machine.
