Promotional Nylon Filter Mesh in Nylon Mesh Industrial Fan

Promotional Nylon Filter Mesh in Nylon Mesh Industrial Fan

US$9.25 50 Pieces (MOQ)

Basic Info.

Model NO.
FRS-NL
Medium Material
Nylon Mesh
Efficiency
G4
Filtration Grade
Pre Filter
Type
Panel Filter
Warranty
3 Months
OEM
Acceptable
Filter Object
More Than 10 Micron Pre-Filtration of Particles
Humidity
Lower Than 100%Rh
Washable
Yes
Filter Media
PP, PA, PE and Other Materials
Inner Support Frame
Galvanized Steel and Stainless Steel Wire
Frame
Aluminum Alloy, Stainless Steel, Non-Woven Fabric
Transport Package
Paper Carton
Specification
Customized
Trademark
Fresh Air Filter or Customized
Origin
Foshan, China
HS Code
8421999090
Production Capacity
500000 Pieces /Year

Product Description

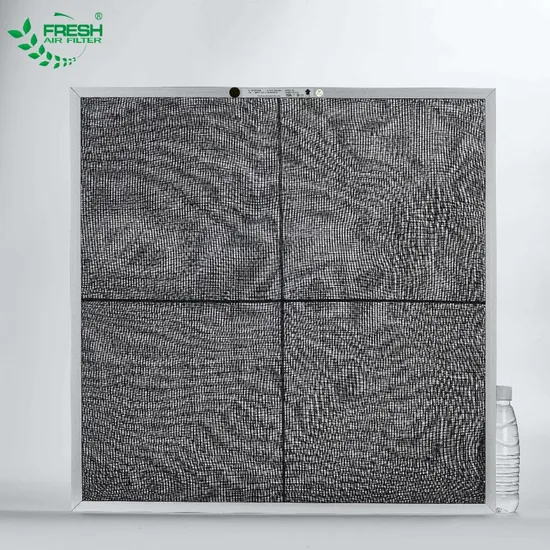

Nylon Mesh Pre-filter
Advantage:
* Acid/Alkali resistible
* Washable
* High airflow rate and low airflow resistance
* High temp resistible and damp-proof
Applications:
Pre-filter and foreign material filtration ,commercial and industrial ventilation systems
1) Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection.
2) The pre-filtration of central air-conditioning system and clean room air inlet pre-filtration.
3) Pre-filtration at the inlet of Air purification equipment
4) Air conditioning airflow distribution filtration.
5) Primary filtration in a filtration system
Material and Features:
1) Filter media :PP,PA,PE and other materials for monofilament woven nylon mesh
2) Inner support frame : galvanized steel and stainless steel wire
3) Frame: Aluminum Alloy frame/stainless steel frame/non-woven fabric wrapping
4) Large ventilation capacity. Low airflow resistance, washable, reusable, long life span in humid working condition.
5) Certain corrosion resistance to general solvent, weak acid and weak alkali, to avoid prolonged exposure to ultraviolet light from the sun.
Technical parameters:
Filter object : more than 10μm pre-filtration of particles.
Wet tolerance (relative humidity ):less than 100%rh
Temperature :less than or equal to 100 Celsius.
Instantaneous temperature :less than or equal to 120 Celsius.
Specification :
Model Dimensions Rates Air Velocity
(m/s)
Rated Air Flow
(m3/h)
Initial Pressure Drop
(Pa)
H(mm) W(mm) T(mm)
FRS-NL-7 595 595 7 2 2500 ≤50
FRS-NL-10 595 595 10
FRS-NL-15 595 595 15
FRS-NL-21 595 595 21
FRS-NL-25 595 595 25
FRS-NL-46 595 595 46

Remark: other specifications can be customized

Product Display
WHY CHOOSE US?
1. We have specialized in the export of air filters for over 14 years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand.
4. The dimension can be customized.
5. Our company have passed ISO9001 2008 and ISO9001 2015, ISO14001, ISO45001, ISOTS16949-2009.
6. The products have passed SGS certification, CE certification, UL900 certification.
7. With independent R&D and design capabilities.
