US$0.50-0.59
|
100,000 W
(MOQ)
|
Basic Info.
Certification
ISO, CB, CE, TUV
Specification

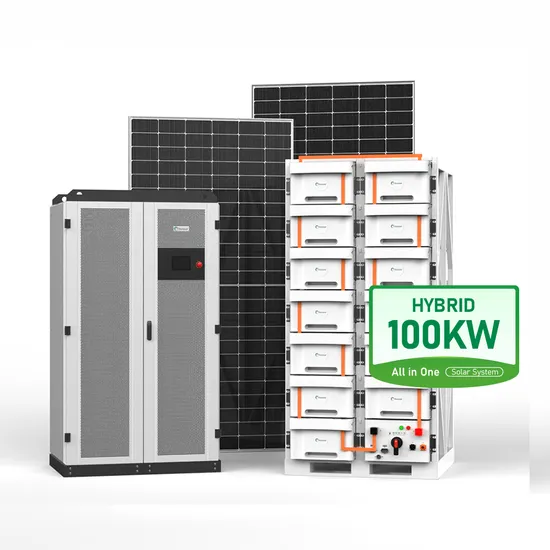

Large, Solar Power System 100KW
Output Voltage (V)
220V/380V or 230V/400V
Output Frequency
50Hz/60HZ
Solar Panel Type
Monocrystalline Silicon Bifacial
Mounting Type
Ground Mounting
Technical Support
Complete Technical Support
Transport Package
Carton with Pallet
Production Capacity
50sets/Day
Packaging & Delivery
Package Size
231.50cm * 112.50cm * 127.50cm
Package Gross Weight
1228.000kg
Product Description
Product Description
How it works
Topcon Half Cut Solar Panel
Peak Power Watts: 580WMaximum Power Voltage: 42.71V Maximum Power Current: 13.58A Open Circuit Voltage: 51.79V Short Circuit Current: 14.29ASize: 2279*1134*30mm Weight: 31.5 kgHybrid Solar InverterFlexible: various working modes can be set flexibly;Convenient: Integrated design to support loads, batteries, power grids, diesel generators and PV be connected;Reliable: Prediction intelligent battery management and discharge time. High Voltage LiFePo4 BatteryQuick Customization of Electricity;Long cycle life 6000 cycles;Safety first Smart BMS system;Emergency-Backup and Off-Grid Functionality.Monitoring SystemOpen station supports one-click installation and registration;Problem support one-click dispatch and navigation;Safe operation, traceable logs, etc;Support full lifecycle data storage to ensure data security and reliability. PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt;Mid & End Clamps: 30 and 35mm;L Foot Asphalt Shingle Mount & Hanger Bolt Optional;Cable Clip & Tie Optional;Ground Clip & Lugs Optional. PV Combiner Box
IP Rating: IP65Rated Voltage: 1000VDCInput cable terminal: 4-6mm² DC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years DC & AC Disconnect Switch
IP Rating: IP66Rated Voltage: 1000VDCConnection Type: M20,M25,MC4Rated Current: 16A,20A PV ToolsWire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors AssemblyDisassembly ToolSpecification
System Model | SP-100KW-HY |
PV Module Specification |
Power(W) | 580W |
Voc(V) | 51.79 |
Isc(A) | 14.29 |
Vmp(V) | 42.71 |
Imp(A) | 13.58 |
Dimensions (L x W x H) (mm) | 2279*1134*30 |
PV Module weight (KG) | 31.5 |
Inverter Specification |
Inverter Size (KW) | 100 |
MPPT Voltage Range(V) | 200-850 |
Number of MPPT | 2 |
Max. AC Current(A) | 144 |
Output Frequency | 50/60Hz |
Output Voltage | 320-460V |
Grid Type | Hybrid |
Dimensions(WxHxD)(mm) | 1200*800*2050 |
Inverter Weight GW(kg) | 900 |
Battery Pack Specification |
Battery Type | LiFePO4 |
Battery Bank Power(kWh) | 200.704 |
Battery Bank Voltage(V) | 716.8 |
Battery Bank Current(Ah) | 280 |
Our FactoryCompany Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Packaging & Shipping
The volume of 100KW solar system is around 22CBM, so we advise to use 20ft container.And lithium battery is dangerous goods, full container is more convenient,there is few destination port fee for full container.Kindly contact us if you want more details.
Project Case
For commercial solar projects, if you don't have project experience, it is never mind.We provide technology support, including system design, electric diagram and connection drawing, etc.Our engineer can also instruct to install at project place if necessary.Do not hesitate to contact us if you have any concerns.
