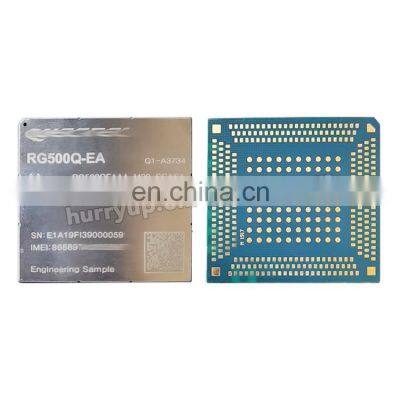

5G NR Sub-6GHz Bands RG500Q-EA, 5G Module RG500QEAAA-M20-SGASA LTE Cat 20 RG500QEA RG500Q

Product Description

Product Description
DescriptionOverviewThe RG500Q-EA is a 5G sub-6GHz LGA module measuring 41.0mm × 44.0mm × 2.75mm which meets the 3GPP Release 15 specification and is optimized for IoT applications in EMEA and APAC. It supports both standalone (SA) and non-standalone (NSA) modes, as well as Option 3x, 3a and Option 2 network architecture, is backward-compatible with 4G and 3G networks, and delivers maximum downlink rates of 2.5Gbps and maximum uplink rates of 900Mbps.The RG500Q-EA supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS receiver greatly simplifies product design and makes positioning capabilities quicker and more accurate. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux and Android) allow the RG500Q-EA to serve a wide range of IoT applications including business routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs and digital signage.Key FeaturesSupports frequency bands 850/900/1800/1900MHzSupports BT 3.0Power consumption as low as 1.3mAEasier soldering process with LCC packageSupports QuecFOTASupports QuecLocatorEmbedded internet service protocols, multiple sockets and IP addressesWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
