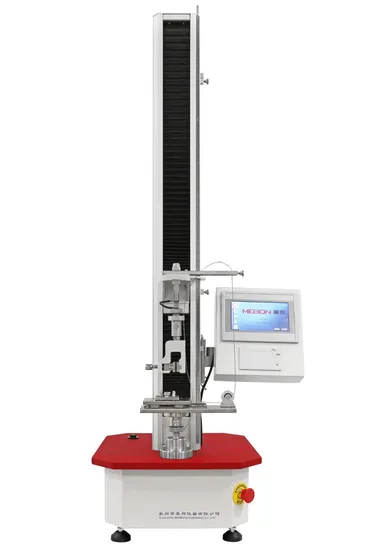

Servo Universal Electronic Stripping Machine Price/Tensile Tester/ Textile Tensile Strength/Metal Testing Machine/Electronic Universal Testing Machine 026dk

Product Description

Electronic stripping machine YG026DK Textile Tensile Testing Machine, available with single and dual column frame with capacities of 50N, 100N, 250N, 500N, 1KN, 2.5KN .These machines are designed to test a wide range of materials in tension, compression, flexure, shear and peel. Textile Tensile Strength Tester complies with ISO 13934.1/2, ISO 13935.1/2, ISO 9073.3/4, etc. We are professional Tensile Strength Tester manufacturers.
Application
Textile Tensile Testing Machine, to determine the physical and mechanical performance of tension, tearing, compression, bursting, rapture, flexibility, shear and peel and seam slippage. Especially designed to test a wide range of yarn, fabric and leather, with a huge assortment of specimen grips and software available; it can also be used for strength test of rubber, plastic, metal, wire, paper, packaging, and other materials.
Specification
1.Test method CRE principle.
2.Control system closed control system, quality motor and ball-screws.
3.Force reading: cN,N,kN,gf,kgf,lbf.
4.Tensile speed 0.1-500mm / min digital speed, error ≤ ± 2%.
5.Elongation Resolution 0.01mm.
6.Measuring system high-precision force sensor.
7.Sampling frequency of system 2000 times / sec.
8.Force measurement range 1% of full scale to 100%.
9.Minimum scale value 0.01N.
10.Force measurement accuracy ≤ ± 2% F • S.
11.Gauge distance limit control, digital setting.
12.Gauge distance accuracy ± 0.1mm.
13.Working space H 600mm.
14.Sample holder pneumatic clamping.
15.Holder control button switch and foot switch.
16.Built-in intelligent active force and displacement alarm system.
Standards
ISO 13934.1 ISO 13934.2 ISO 13935.2 ISO 9073.3 ISO 9073.4 ISO4606
ASTM D5035 ASTM D5034 ASTM D2261 ASTM D5587 ASTM D1683 ASTM D4964
Weight

60 kg

Power

220/110 V

50/60 Hz

Dimensions

Width:

430 mm

Length:

480 mm

Height:

1800 mm

Instrument Operation interface
Computer operation interface
