Aluminum Integrated CNC Double-Head Door and Window Cutting Saw

Product Description

Product Description
1,CNC operating system, can be connected to customer ERP software.
2,Cutting and cutting for aluminum curtain wall profiles, door and window profiles, and plastic profiles.
3,The machine head adopts a cast structure, with better shock absorption effect and high stability.
4,The movement of the right machine head uses a high-precision gear rack motion form, with high transmission accuracy, precise positioning, and smooth operation. The two saw heads can automatically switch angles to achieve angle cutting of 45° and 90° profiles.
5,The two saw heads can automatically adjust angles and set lengths according to the cutting list requirements.
6,Imported linear bearing motion pair to ensure cutting accuracy.
7,Imported high-precision spindle motor for stable saw blade rotation.
8,The pneumatic-hydraulic damping cylinder achieves uniform feed speed control and smooth movement.
9,Automatic opening and closing protective cover for safe and convenient operation.
10,Material height measurement device.
11,Automatic material support structure.
12,It can scan the cutting list, barcode printing function, and continuous scanning recognition from cutting to subsequent processes.

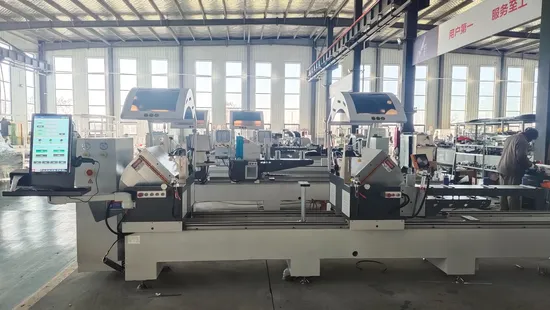

Detailed Photos

Product Parameters

Input power supply:	380V/50Hz
Saw cutting motor:	2×2.2kW 2,800r/min
Servo motor:	1.5kW 4,050r/min
Working air pressure:	0.5~0.8MPa
Air consumption:	60L/min
Saw blade specifications:	Ф500×Ф30×4.4 Z=120
Feeding speed:	0~3m/min
Machine head movement speed range:	0~20m/min
Saw cutting length:	Maximum 4,200mm Minimum 360mm at 90° Maximum 4,200mm Minimum 360mm at 45° Plus two profile heights
Cutting width × height:	Maximum 150mm × 150mm at 45° Maximum 150mm × 200mm at 90°
Saw cutting angle:	90°, 45°
Repeated fixed-length accuracy:	≤0.10mm
Cutting angle error:	±5 ′
Cutting surface roughness:	Ra12.5μm
Dimensions:	6500×1,750×1,950mm
Weight:	Approximately 1,850kg

Company Profile
Shandong Chengjiang CNC Technology Co., Ltd is a premier manufacturer of high-end intelligent equipment, seamlessly integrating research, production, and sales. Our expertise lies in the innovative research, development, manufacturing, and sales of cutting-edge industrial aluminum processing equipment, alongside specialized aluminum door and window machinery, aluminum curtain wall systems, and plastic door and window solutions. Powered by an exceptional research and development team and a cadre of professional technical staff, we are committed to delivering superior quality equipment. Chengjiang is steadfast in its mission to pioneer the most advanced door, window, and curtain wall processing technology in China, setting new benchmarks in the industry.
Our Advantages
Shandong Chengjiang CNC Technology Co., Ltd. stands at the forefront of door and window processing equipment, perfectly blending industry expertise and trade acumen. Discover our unparalleled advantages:
1. Comprehensive Casting and Assembly Workshops with Customization Capabilities
At Shandong Chengjiang CNC Technology Co., Ltd., our end-to-end production line ensures seamless equipment processing. From raw material handling to meticulous polishing, casting, and painting, every step is executed in our state-of-the-art foundry workshop. Post-processing, parts transition seamlessly to our assembly workshop for precise assembly and thorough debugging. Boasting years of experience in door and window equipment processing, we excel in meeting diverse customization demands. Tailor your equipment to your exact specifications, including length, parameters, and color, ensuring a bespoke solution that perfectly aligns with your needs.
2. Cost Reduction, Efficiency Enhancement, and Quality Control
By integrating industry and trade, we streamline production and sales processes, optimizing our supply chain to significantly cut costs and boost efficiency. This synergy within our company ensures stringent quality control, guaranteeing that every product not only meets but exceeds industry standards.
3. Elite Technical R&D Team with Numerous Patents
Our elite technical R&D team, comprising over 10 dedicated professionals, is at the heart of our innovative prowess. Specializing in continuous product development and enhancement, our team holds multiple invention patents and possesses exclusive intellectual property rights. With over a decade of hands-on experience, our technical experts ensure that each product is crafted to perfection, maintaining rigorous quality standards at every stage of production and assembly.
After Sales Service
Pre-Sale Service
Get in touch with us to find the perfect machine for your needs, at no cost to you.
Enjoy bespoke professional designs tailored to each customer's unique requirements, free of charge. After Sale Service Receive round-the-clock technical support via phone, email, or Skype-whenever you need it, we're here for you.
Benefit from a 1-year warranty period, ensuring peace of mind and reliable operation.
Our expert senior engineer is ready to travel abroad to assist with installation, maintenance, and staff training, ensuring seamless operation and efficiency.
FAQ
1. Are your company a trading one or a factory?
We are an integrated entity combining both factory and trade, boasting 14 years of dedicated expertise in UPVC, Aluminum Window and Doors Equipment, as well as curtain wall equipment.
2. After an order is placed, when to deliver?
Generally, our delivery time is around 30 days. If we have items in inventory, we can expedite shipment within 10 days.
Please note that our production lead times are subject to specific items and quantities ordered.
3. What about the warranty with after-sales services?
We offer a comprehensive 12-month warranty. Beyond this, we are committed to assisting you with any issues at no additional cost.
Post-warranty, our professional after-sales service team will continue to provide exemplary technical support and resolve any problems customers encounter with our products. We pride ourselves on handling guest issues and complaints promptly and professionally.
4. What about the services and product quality?
Each machine undergoes a rigorous 100% quality examination and testing before shipment.
Moreover, all our machines are compliant with ISO and CE certifications.
5. We don't know how to operate the machine, what should we do?
We can dispatch an engineer to your location or provide detailed video training to demonstrate installation and operation. Additionally, our engineers are available for online support.
