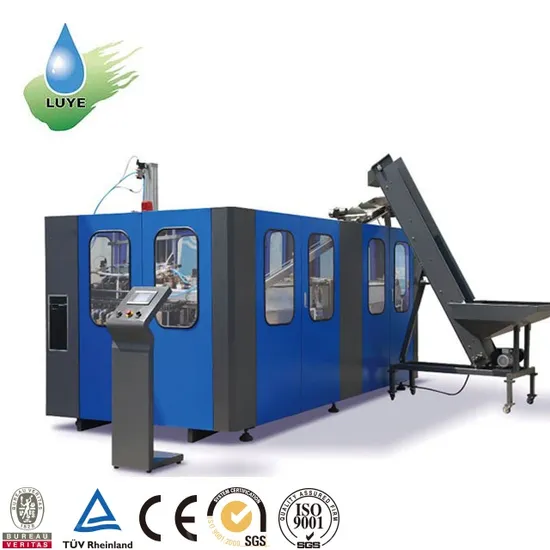

Automatic High Quality Manufacturers Price Plastic Bottle Blow Moulding Machine

Product Description

Product Description
Automatic Shampoo Detergent Liquid Food Oil Carbonated Juice Drink Beverage Drinking Water Plastic Bottle Making Machine Blower / PET Jar Blow Molding Machinery

Beverage Bottle Water Bottle / Beverage bottle / Juice Bottle / Coffee bottle.

Food & Daily Chemical bottle Food oil bottle / Cleaning liquid bottle / Cosmetic bottle /medical bottle. .

The two-step PET stretch blowing machine which are applicable in a wide range of PET packaging practice, such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc. With more than 10 years experience in developing and producing blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.
WOULD LIKE TO KNOW MORE ABOUT LUYE MACHINE EQUIPMENTS, FEEL FREE TO SEND US AN INQUIRY!
FEATURES OF MAIN BODY :
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle
shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could
adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect
safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.
1.1 NEW AUTO PREFORM UNSCRAMBLER SYSTEM.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and
abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator
to add the preforms into the hopper when lacks preform instead of stopping the machine.
1.2 NEW HEATING SYSTEM.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
1.3 THE APPLICATION OF SERVO SYSTEM ON MAIN TRANSMISSION.
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily
when the machine starts and running.
1.4 SERVO TECHNOLOGY INNOVATION ON CLAMPING SYSTEM & STRETCHING.
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve
productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
1.5 EASY TO CHANGE BOTTLE SHAPE.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same
bottleneck diameter.
1.6 INTELLIGENT HUMAN-MACHINE INTERFACE.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Technical Parameter:
Automatic Type Machine

Model	Item	ECO2L	ECO4L	ECO-6L	Turo-6S	Turo-9S
Productivity	Depend on bottle design	2400-3000PCS/H	3500-4200PCS/H	5500-6300PCS/H	8000-9200PCS/H	11000-12200PCS/H
Product type	Volume	0.1-2.0L	0.1-2.0L	0.1-2.0L	0.1-0.75L	0.1-0.75L
	Body diameter	≤100mm	≤100mm	≤100mm	≤100mm	≤100mm
	Height	≤310mm	≤310mm	≤330mm	≤330mm	≤330mm
	Neck diameter	≤38mm	≤38mm	≤38mm	≤38mm	≤38mm
Mold	Cavity	2	4	6	6	9
	Mold thickness	240mm	240mm	240mm	240mm	240mm
	Mold volume	260*240*370mm	510*240*360mm	640*240*360mm	640*240*360mm	840*240*360mm
Main machine power	Electrical source power	380V/220V 50/60Hz	380V/220V 50/60Hz	380V/220V 50/60Hz	380V/220V 560/60Hz	380V/220V 560/60Hz
		3Phase	3Phase	3Phase	3Phase	3Phase
	Rated power	25kw	49kw	73kw	97kw	127kw
	Really use power	6.5kw	13kw	25kw	32kw	52kw
Air system	HP air compressor	1.6m³/min3.0MPa	3.0m³/min3.0MPa	6.0m³/min3.0MPa	6.0m³/min3.0MPa	8.0m³/min3.0MPa
	LP air compressor	1.0m³/min1.0MPa	1.6m³/min1.0MPa	2.0m³/min1.0MPa	2.0m³/min1.0MPa	2.0m³/min1.0MPa
	Air tank	0.6m³3.0MPa	0.6m³3.0MPa	1.0m³3.0MPa	1.0m³3.0MPa	1.0m³3.0MPa
	Air dryer	1.0m³/min3.0MPa	2.0m³/min3.0MPa	6.0m³/min3.0MPa	6.0m³/min3.0MPa	8.0m³/min3.0MPa
Cooling water	Water Chiller	3HP	3HP	5HP	5HP	8HP
Machine	Size(L*W*H)	1900*1280*1930mm	1900*1860*1930mm	4100*1400*1800mm	4100*2200*1800mm	4700*2600*1800mm
	Weight	2000kg	3600kg	4200kg	4800kg	5700kg
Preform unscrambler	Size(L*W*H)	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm
	Weight	500kg	500kg	500kg	500kg	500kg

FAQ
1.ARE YOU MANUFACTURER OR TRADE COMPANY?
We are manufacturer, located in Zhangjiagang. We are Specialized in beverage machinery 30 years! Our company business is supply all kind of beverage filling machine, package machine, water treatment machine And complete line from A-Z for water, juice, carbonated drink, beer, Aluminum Can drink, all kind of bottle drink filling machine
2.WHAT'S THE ORDER PROCESS?
a. Inquiry-- Provide us all your clear requirements.
b. Quotation-- Official quotation form with all clear specifications.
c. Payment terms-- T/T 30% in advanced, balanced before shipment. We can talk about this when deal.
d. Shipping-- By sea, Detailed picture of package will be provided.
3.CAN YOU GIVE ME YOUR PRICE LIST?
Sorry, we are machine manufacturer, we have more than 100 items, and each machine have different bottle Type, weight, Voltage, Dimension, Capacity, Usage so on request. So please send me your detail request, then I will email you back the price.
4.WILL YOU HAVE SOME DISCOUNT?
a. To clients who bring repeat orders and large orders
b. Please contact us for Better Quote.
5.HOW CAN I INSTALL MY MACHINE WHEN IT ARRIVES?
We will send our engineer to go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
AFTER-SALES SERVICE
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee untill they can operate the machine well.
3.We often ask feed back and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty.
5.Well-trained & experienced staff are to answer all your inquires in English and Chinese
6.24 hours for engineer response ( all services part 5days in customer hand by Intl' courier).
7.12 months guarantee and life-long technical support
8.Your business relationship with us will be confidential to any third party.
9.Good after-sale service offered, please get back to us if you got any questions.
