High Quality Dakiou Paper Cup Machine

Product Description

The product's video in YOUTUBE: https://youtu.be/0y9fHUBek8w

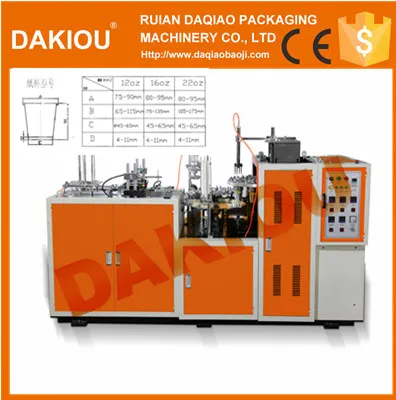

ZB-D Automatic Paper Cup Forming Machine
ZB-D paper cup machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an ideal equipment for producing drinking cups, market cups, coffee cups, advertising cups, etc. which is wildely used in drink and beverage market.
We recommend you to usd Ultrasonic paper cup machine, which can produce single and doble PEcoated paper cups, if you need double PE coated paper cups or paper gram higher 250g/m2
Tecnincal Sepcification

Type:	ZB-D
Cup size:	3-12oz(different size mold exchanged)
Suitable paper material:	150-380g/m2 (single or double PE-coated paper)
Capacity:	50-60pcs/min
Power source::	220V,380V 50HZ(please inform us your power in advanced)
Total power:	6KW
Weight:	2100KG
Package size:	2600 x 1350 x 1700 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min
	A:top diameter: Min 45mm---Max 90mm B: bottom diameter Min 35mm---Max 75mm C: total height Min 30mm---Max 115mm D:bottom knurling depth Min 4mm---Max 12mm E: rim diameter Usually Φ2.5---Φ3

Advantage and improvement
1. To use gear drving system insead of chain, which is more stable running and speed improvement.
2. To use automatic lubrication recycle system instead of oiling by hand to reduce the friction and wear between gears, so that the machine runs more safe and steady, as well as cost fewer.
3. TO use 125 type gear box, which endures more pressure, makes the product more accurate and has a long life.
4. To use the new type speed reducer 100. Also the new design of the knurling wheel is used to guarantee the even pressure and better bottom sealing.
5. Cup folding parts are controlled by three separate cams, and each folding clip can be adjusted by itself.
6. To use manipulator to transfer the up body instead of falling itself by pipes, which makes the equipment more stable and accurate under the fast running.
7. Change the Ø25 normal steel shaft to Ø30 imported steel shaft to be sttrengthened,longer life and more stable.
8. To use the organ type sucker, the power and stability of sucking is enhanced by it. The product life is more longer than before.
Production show
If you have any requirements, please inform me!
