Lower Price High Response New Style High-Speed Injection Molding Machine for Thin Wall Product Hxh430

Lower Price High Response New Style High-Speed Injection Molding Machine for Thin Wall Product Hxh430

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
HXH430
Type
Injection Molding Machine
Structure
Horizontal
Plastic Type
PS,ABS,PP,PE,HDPE,PA,EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Voltage
380V/50Hz, According to Countries
After Sales Service
Engineers Avaiable to Service Machine
Injection Capacity in Theory
692 Cm3
Injection Weight
630 G
Moving Mould-Plate Stroke
690 mm
Space Between Tie Bar
760*710 mm
Transport Package
Standard Package
Specification
7.5*1.96*2.1 M
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Product Description

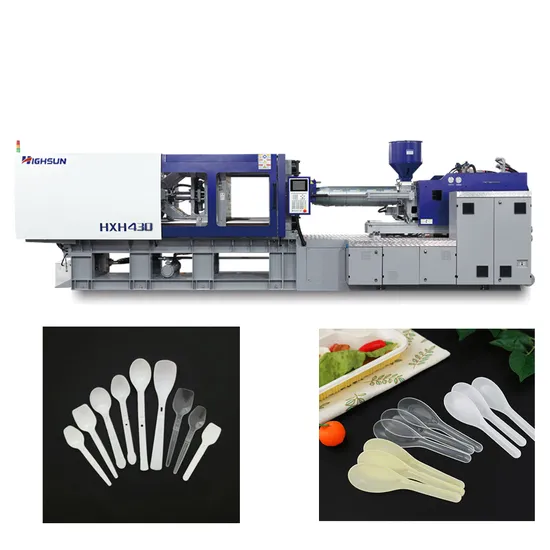

1.Picture
2. Specifications
MODEL:HXH430
TECHNICAL PARAMETER TABLE A B C D
INJECTION UNIT SCREW DIAMETER mm 55 60
SCREW L/D RATIO L/D 24 22
INJECTION CAPACITY IN THEORY cm3 582 692
INJECTION WEIGHT(PS) g 529 630
oz
INJECTION PRESSURE MPa 175 148
INJECTION RATE g/s 350 350
PLASTICIZING CAPACITY g/s 80 97
SCREW SPEED rpm 400
CLAMPING UNIT CLAMPING FORCE KN 4300
MOVING MOULD-PLATE STROKE mm 690
MAX. MOULD HEIGHT mm 780
MIN. MOULD HEIGHT mm 280
SPACE BETWEEN TIE-BARS (W×H) mm 760*710
HYDRAULIC EJECTOR FORCE mm 181
HYDRAULIC EJECTOR STROKE KN 180
EJECTOR NUMBER n 13
OTHERS PUMP PRESSURE MPa 17.5
MOTOR /DRIVING POWER KW 37+45
HEATING CAPACITY KW 20.3
MACHINE DIMENSION (L×W×H) m 7.5*1.96*2.1
MACHINE WEIGHT t 16
OIL TANK CAPACITY L 850

3. Advantage
a. SUPER ENERGY SAVING
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor willreduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. HIGH PRECISION AND HIGH STABILITY
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. HIGH RESPONSE AND HIGH EFFICIENCY
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
4. Product Produced by Injection Molding Machine
5. Factory
6. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.
