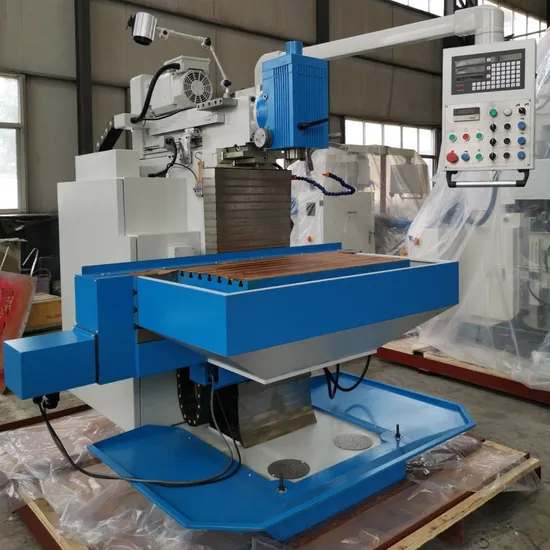

Automatic Feed Universal Manual High Precision Servo Drive Tool Milling Machine for metal cutting
Product Description
Features of universal tool milling machine
1.Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds
2.Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.
3.Electronic handwheel adopted on X Y Z 3-axis ,easy operating
4.Automatic oil lubrication, cooling system,Chip collector tray,CE Schneider Electric are standard.
Δ Spindle:
√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining√ vertical & horizontal spindles combined, for flexible operation√ 60mm spindle stroke, milling and drilling functions are available
Δ Working feed:√ X/Y/Z-axis ball screws, good precision
√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding
√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance
√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding
√ vertical & horizontal combined work-tables, for flexible clamping of workpiece
√ fitted with automatic centralized lubrication system, for automatic timing lubrication
Detailed Photos
This machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.
This universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool.

Product Parameters

Items	XL8132	XL8140	XL8145
Working area
Worktable size (L×W)	750x320mm	800x400mm	850x450mm
T slot (Width x No. x pitch)	14x5x63mm	14x6x63mm	14x7x63mm
Vertical table size	890x225mm	1020x225mm	1190x250mm
T slot (Width x No. x pitch) Vertical table	14x3x63mm
Max. load of table	160kg	200kg	300kg
Torque of feed motor (X)	7.7Nm	7.7Nm	10Nm
Torque of feed motor (Y)	7.7Nm	7.7Nm	10Nm
Torque of feed motor (Z)	10Nm	10Nm	15Nm
Spindle axis-to-table surface distance(Horizontal)	145-545mm	145-545mm	170-620mm
Spindle nose-to-table surface distance(Vertical)	50-450mm	50-450mm	75-525mm
Travels
Longitudinal travel (X)	405mm	500mm	600mm
Transverse travel (Y)	305mm	400mm	450mm
Vertical travel (Z)	400mm	400mm	450mm
Feeds of X Y Z axis	10-1000mm/min
Rapid feed	1200mm/min
Spindle
Spindle speed (V&H)	2 steps; 40-260rpm, 260-2000rpm
Spindle taper (V&H)	NT40
Vertical quill travel	60mm
Main motor power	3.7kW	3.7kW	5.5kW
Others
Machine size (L×W×H)	1500x1700x1800mm	1500x1700x1800mm	1600x1800x2000mm
Net weight	1450 kg	1550 kg	1750 kg

Standard accessories:
Horizontal arbor assembly Ø16,22,27,32mm
Reducing sleeves MT1/MT2 /MT3
Milling chuck with collets(2,3,4,5,6,8,10,12mm)
Draw bar
Outer arbor support for horizontal milling
Chip collector tray
Work lamp
Coolant system
Automatic centralized oil lubrication
Schneider electric components
Tools & tool box
Operator manual
Optional accessories
Packaging & Shipping
Delivery time: generally 30-60 days production time after confirmation of orderPacking type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.
