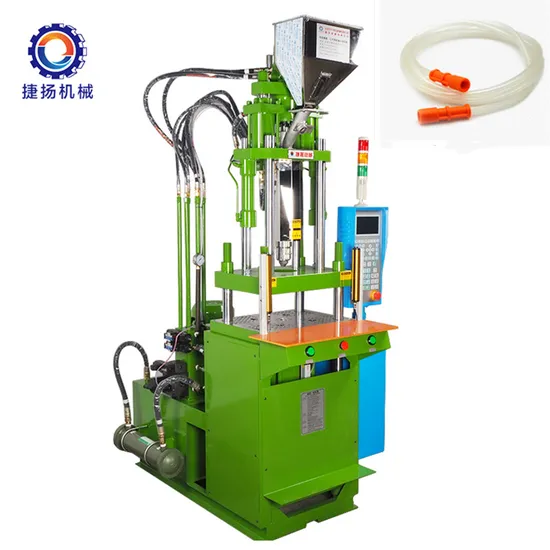

Oxygen Tube Injection Machine Vertical Injection Moulding Machine for Making Oxygen Cathete
| US$7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JY-350ST
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Brand Name
Jieyang
Screw Diameter
30mm
Injection Pressure
136.5MPa
Injection Rate
69.2cm3/S
Number of Temperature Control
2
Clamping Force
35t
Platen Size
490*325mm
Max.Open Daylight
260/360mm
Machine Weight
1t
Machine Dimension
1.48*1.07*2.15m
Transport Package
Standard Packaging
Specification
CE
Trademark
Jieyang
Origin
Dongguan, China
HS Code
8477101090
Production Capacity
200 Set/Month
Product Description
Oxygen Tube injection machine Vertical Injection Moulding Machine for making oxygen catheteFunction:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine:
| JY-350ST Technique specification | ||||
| Model | Units | JY-350ST | ||
Injection System | Screw Diameter | mm | Φ28 | Φ30 |
| Injection Pressure | Kgf/cm2 | 1219 | 1062 | |
| Theoretical Shot volume | cm3 | 76.93 | 88.3 | |
| Max. Shot Weight(P.S) | g/Oz | 72.7/2.56 | 83.5/2.94 | |
| Injection Rate | cm3/s | 60.3 | 69.2 | |
| Max.Screw speed | rpm | 0-190 | ||
| Temperature Control | ZONE | 2 | ||
Clamping System | Clamping Force | T | 35 | |
| Platen Size | mm | 490*325 | ||
| Distance Between Tie Bare | mm | 370*205 | ||
| Min Mold Height | mm | 80/180 | ||
| Opening Stroke | mm | 180 | ||
| Max. Open Daylight | mm | 260/360 | ||
| Ejector Force | T | 1.3 | ||
| Ejector stroke | mm | 25 | ||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | |
| Pump Motor Power | Kw | 4 | ||
| Barrel Heating Power | Kw | 2.8 | ||
| Total Wattage | Kw | 6.8 | ||
Others | Machine Dimensions (L*W*H) | m | 1.48*1.07*2.15 | |
| Machine Weight | T | 1 | ||
| Key Parts List | |||
| Part Name | Brand | Original of Country | Features |
| Computer | Star Denshi | Japan | High Precise Control, sensitive response, TFT Color display |
| Servo Motor | YASKAWA | Japan | Energy Saving |
| Electromagnetic valve/ solenoid valve | Yuken | Japan | High sensitive response |
| hydraulic valve | HSUTIEN | Taiwan | Longer span life |
| Material Cylinder | Tan Star | Taiwan | Antia brasive corrosion resistance Longer span life |
| Electronic parts | Schneider Fuji Fotek | France/Japan/Taiwan | Stable High sensitive |
| hydraulic Motor | White | USA | Low noise |
| Servo Pump | Eckerle | Germany | Low noise |
| Electrical Ruler | Gefran | Italy | High Precise Control |
| Tiebar | Genaral | Taiwan | High hardness |
| Seal | HALLITE | UK | Longer span life |
| Proportional rejection valve | Yuken | Japan | High Precise Control Longer span life |
| Oil Cylinder | Lianhuei | Taiwan | Antia brasive |
Machines Details:
Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time.
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Where is your factory? How can visit you? |
| A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
| Q5: Why choose Jieyang Machinery Co., Ltd.? |
| A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
Welcome to inquiry us !
