High Quality Offset Printing Thermal CTP Plate Making Machine

Product Description

High Quality Plate Making Machine Thermal CTP for Offset Printing

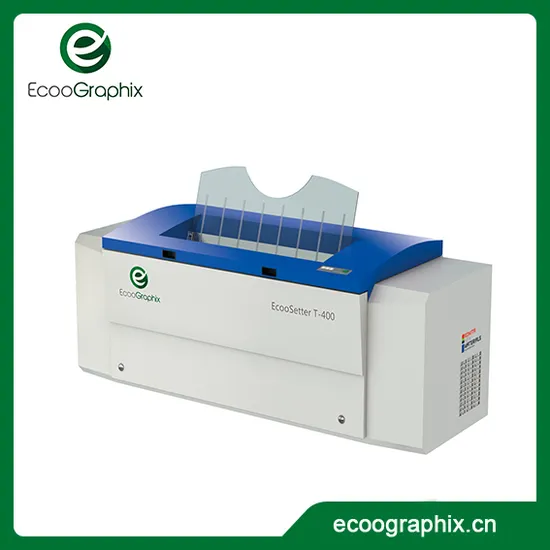

Model: EcooSetter T-400F
1. Application:
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly though the CTP machine and save the film and labor. By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix T400 series thermal CTP are for newspaper or commercial printing with the output speed of 16PPH to 28PPH. The CTP is operated by manual, very easy to use.
2. Technical Data:

Model	T-400F	T-400S	T-400E
Imaging System	48 channel	32 channel	24 channel
Output Speed	28 plates/hour	22 plates/hour	16 plates/hour
	800mm x 600mm / 2400dpi
Plate Size	Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Weight	800KG
Machine Size (WxLxH)mm	1900×1200×1000mm(W×D×H)
Power Supply	Single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment	Recommended: 21-25ºC, Allowed temperature: 15-30ºC, Humidity: 40-70%RH

3. Characteristic:
-Less manpower, high stability and perfect output quality. -UV plate and thermal plate are available for you to lower production cost.
EcooGraphix CTP Strengths:
1)Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction; Up to 250lpi screening ,2400 dpi or 1200dpi optional
2)Fully qualified: for any thermal non-process plate and process plates.
3)Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
4)Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.

4. Production Line and Packaging:
4. Our Service And Installation Around The World:
EcooGraphix has over 500 CTP installation across the world.
Our partner in around USA, Mexico, Australia, Turkey, Hungary, African countries and so on.
Remote service and emergency site visit: regular 7x24 hours available for remote diagnosing and operating machine through Internet Teamviewer, Zoom and other is provided. There will be no down time of the CTP machine, our tech team guarantee this.
5. Cerfiticates:
6. Q&A:
1. What are your main products?
We Ecoographix is a Chinese brand who has been in this industry for more than 20 years and offers full range of prepress and postpress machines and consumables.
Below is our category:
1)Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2)Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
2. What is your warranty for the CTPs?
Thress years' laser head and main spare parts for the CTPs, one year for the Processor.
3. What is the lead time?
Usually 25-30 days, and we will try our best to meet your demands.
4. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
