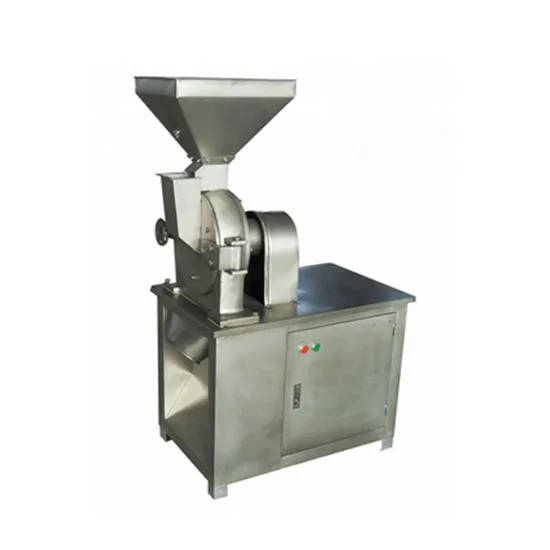

Wf-350 IV. VI Fine Pulverizer
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Wf-350
Cutter Material
High-Speed Steel
Drive
Electric
Object
Metal
Type
Impact Crusher
Applied in
Food, Pharmaceutical and Chemical
Crushing Fineness
80-400 Mesh
Feeding Size
≤3mm
Weigh
320kg
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Universal Tongs
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8465990000
Production Capacity
80-300kg/H
Product Description
Main Application:
Applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Technical Parameters:
| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Motor Power | overall dimension | weigh |
| WF-130 IV.VI | 5-30kg/h | ≤2mm | 80-400mesh | 13900r/min | 1.5kw | 400*500*850mm | 90kg |
| WF-180 IV.VI | 30-80kg/h | ≤2mm | 80-400mesh | 10000r/min | 2.38kw | 850*800*1126mm | 200kg |
| WF-250 IV.VI | 50-100kg/h | ≤2mm | 80-400mesh | 6500r/min | 5.5kw | 550*650*1400mm | 280kg |
| WF-350 IV.VI | 80-300kg/h | ≤3mm | 80-400mesh | 5800r/min | 11kw | 600*700*1480mm | 320kg |
| WF-450 IV.VI | 100-500kg/h | ≤3mm | 80-400mesh | 4500r/min | 15kw | 800*900*1550mm | 550kg |
| WF-650 IV.VI | 300-1000kg/h | ≤5mm | 80-400mesh | 3800r/min | 22kw | 900*950*1880mm | 680kg |
| WF-850 IV.VI | 500-2500kg/h | ≤5mm | 80-400mesh | 2500r/min | 37kw | 1100*1000*2000mm | 1200kg |
Working Principle:
This machine is of hammer type with high speed and applied for crushing of materials with medium hardness and viscosity. The material is fed into the crushing chamber by a hopper and crushed by high speed rotating hammer. The machine whose crushing chamber is easy to assemble and clean, has simple structure. Wholly made of stainless steel, the machine makes the crushed material met the hygienic requirement.
