Heavy Duty Metal Scrap Shearing Machine/Gantry Shear for OEM

Heavy Duty Metal Scrap Shearing Machine/Gantry Shear for OEM

US$1,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Hydraulic Gantry Shearing Machine
Condition
New
Warranty
1year
Intake Width
1200 1600 1800
Motor Power
2*45 2*75 2*90
Mpeed of Mainshaftsure
12-16 12-18 8-10 5-8
Hobbing Cutter Diameter
400 500 600
Capacity
5-7 8-10 10-12
After-Sale Service
Yes
Operation Mode
Automatic
Applied Range
Car Wheels, Aluminum Engines, Motorcycle and Other
Heavy Equipment
Yes
Pin Spread Range
125-590
Power Source
Hydraulic
Blade
Yes
Texture of Material
Steel
OEM
Yes
Colour
Black Red Blue
Transport Package
Wooden Crate
Specification
2650mm*1550mm*990mm
Trademark
Eastmach
Origin
China
Production Capacity
100000

Product Description

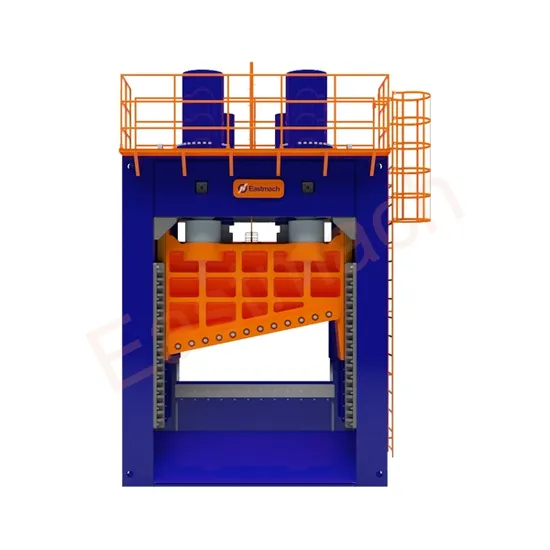

Product Feature Hydraulic Gantry Shearing Machine
Hydraulic Gantry Shearing Machine is suitable for pre compression and shear of various low-carbon scrap steel, scrapped automotive casings, metal structural components, etc.
The product has the following characteristics:
1. Install high-strength wear-resistant alloy steel plates in areas prone to wear and tear, effectively extending the service life of the equipment;
2. The shear slider guide rail and shear oil cylinder adopt automatic lubrication to prevent dry friction damage;
3. The intelligent control system provides optimal shear control and reduces the idle stroke of the shear cylinder;
4. The maximum cutting angle can reach 12 degrees, with strong cutting ability.
Own brand as manufacturing also accepts OEM/ODM
Product Parameters

Model
Parameter
(t/h) Maximum output
(t/h)

(mm) Scissor width
(mm)

(mm) Minimum opening
(mm)
(mm)
Shearing capacity(mm)
(/min)
Shear frequency(times/min)
(mm)Silo size(mm) Main motor
Shear force Pressing force round steel square steel steel plate
Q91Y-400 400 70 3-4 1300 370 φ65 50×50 35×800 3~4 4000×1400×400 2×30KW
Q91Y-500 500 140 6-10 1700 480 φ90 80×80 50×1000 3~4 6000×1600×800 2×45KW
Q91Y-630 630 140 8-12 1720 580 φ120 100×100 55×1200 3~4 8000×1600×850 3×45KW
Q91Y-700 700 220 12-15 1920 580 φ140 120×120 60×1900 3~4 8000×2000×900 5×45KW
Q91Y-800 800 280 15-20 2130 680 φ160 140×140 70×1900 3 8000×2000×900 5×45KW
Q91Y-1000 1000 300 18-23 2130 680 φ180 150×150 80×1900 3 8000×2000×1200 7×45KW
Q91Y-1250 1250 400 20-25 2130 680 φ210 180×180 110×1900 3 10000×2500×1200 8×45KW
Q91Y-1500 1500 500 24-30 2130 680 φ225 200×200 130×1900 3 10000×2500×1200 10×45KW
Q91Y-2000 2000 700 30-38 2130 680 φ250 220×220 150×1900 3 10000×2500×1200 12×45KW
Product Description FAQ
1.Which country have been exported?
Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa etc.
2.How about the Shipment?
Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Yantai and Shanghai etc. Sales manager will select an
optimal shipping method for you. For more information, please contact us.
3. How about the package?
Our attachments are packaged by standard export wooden cases free from fumigation.
4. How about delivery time?
Usually 15 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.
