Tx200 EPS200 EPS205 Common Rail Injector Test Bench

Product Description

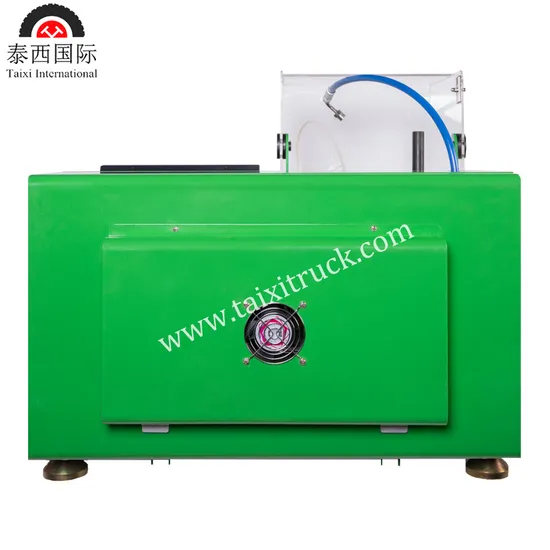

Common Rail Injector Tester TX200
Technical Parameters

Model	TX200 Common Rail Injector Test Bench
The rated output power	2.6KW (servo motor)
The main power supply	220V/240V ,50~60HZ , 1phase
The speed of the test bench	0~1500 r pm
Continuous fuel injection times	0~1000 times
The oil pressure	0~1800bar
Pulse width	100~3000μs
The temperature control range temperature	38±2ºC
Test oil filtration accuracy	less than 5μ
Fuel tank capacity	6L
Overall dimension size(MM)	920 x 870 x 850mm(mm)
Weight	150kg

Introduction
Our independently developed TX200 Common Rail Injector Test bench with high quality is used to test the performance of high-pressure common rail injector from SIEMENS, ect. It is controlled by industrial computer with embedded operating system. The testing is measured by flowmeter and displayed automatically on computer screen.
Product Highlights
1. Using the original Australian FLOMEC flowmeter
2. The fuel tank is equipped with a copper pipe, which can be used for water cooling of fuel.
Function
1. Test range DENSO, SIEMENS and other brands of electronic fuel injector
2. Test the seal of electronic controlled injector
3. Measuring electronic controlled injector's fuel quantity for injection and return under various conditions
4. Electronic controlled injector test full automatically
5. High-voltage electric fuel injector can be washed
6. Can set the injection state and fuel measurement of electronic controlled injector
7. Can detect piezoelectric crystal injector
8. Users can customize the rail pressure, pulse width, fuel measuring time and other parameters
9. Injector test data report can be printed (additional optional printer)
Feature
1. It is installed original CP1 pump to provide 0~1800 bar
2.Real-time controlled by industrial computers, embedded operating system
2. Fuel quantity is measured by sensor and displayed on 12'' tactile LCD screen
3. More than 2700 kinds of injectors data can be searched and used,online update
4. Rail pressure can be tested in real time
5. Provide pressure overload protect
6. Pulse and frequency of the injector can be adjusted.
7. Protection function of short-circuit
8. Precise measurement, easy operation, low noise
9. Frequency converter inside to keep the RPM
10. With server and pump connected directly instead of connected with belt, which can extend machine life
11. Fuel tank cooling system makes the tester can work long time
