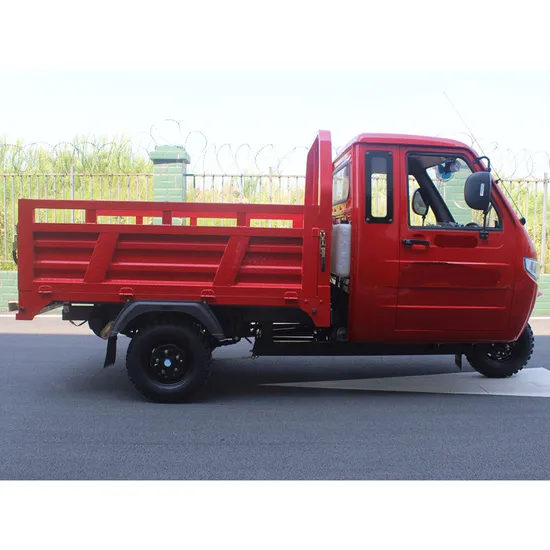

China Good Quality for Semi Cabin Box/ Heavy Three Wheeled Motor
Basic Info.
Model NO.
250cc
Body Type
Open
Displacement
201-250CC
Wheel Distance
>1110mm
Engine
Lifan or Loncin
Dispalcement
150mm
Max Speed
60km/H
Color
Optional
Cargo Box
1.8*1.25m
Transport Package
CKD, SKD, CBU
Specification
CCC, ISO2009
Trademark
DUNYA OR OEM BRAND
Origin
China
HS Code
8112050
Production Capacity
60000/Year
Product Description
Detailed Photos
Product Parameters
| BODY | Application | Enclosed cabin Tricycle |
| Design Max Speed | ≥60km/h | |
| Loading Capacity | 1500 kg-2000kg | |
| Gross Weight | 700KG | |
| Dimension(L*W*H) | 3650*1400mm | |
| Cargo size(L*W*H) | 2000*1400mm | |
| Color | Red/Green/White/Black/Other colors | |
| Front Wheel Brake | drum brake | |
| CHASIS ( FRAME) | Keel (mm) | 40*80 |
| Track | 1150mm | |
| Wheel Base | 2600mm | |
| Ground Clearance | 170mm | |
| Tire | 5.00-12 with spare tire | |
| SUSPENSION & SHOCK | Brake Mode | Front&Back wheels, Drum |
| Brake Operation Mode(F/R) | drum brake | |
| Front suspension | mountain shock absorber | |
| Rear suspension | Leaf spring 7 pieces | |
| Transmission Type | Shaft Drive | |
| Rear axle | Car Strength Driving rear axle | |
| ENGINE | Engine Type | Single cylinder, 4-stroke, camshaft downward, 200cc watercooling |
| Cool Type | watercooled | |
| Bore Stroke | 70×64.8mm | |
| Fuel Tank Capacity | 15L | |
| Fuel Type | Gasoline | |
| Compression Ratio | 9.0∶1 | |
| Min.Fuel Consumption | <=354g kw.h | |
| Rated Power&Rotating Speed | 10.8kw/6500r/min | |
| Max.Torgue/Rotating Speed | 18.5N.m/4500r/min | |
| Lowest No-Load Speed Stability | 1500±150rpm | |
| Clutch Method | Manual-Hand | |
| Power | 10.8 kw | |
| Ignition System | C.D.I. | |
| Apply to | Motor tricycle | |
| Starter | Kick/Electric | |
| PACKING | Loading Capacity | 24 Units in 40"HQ(CKD) |
| Delivery Time (from loading port) | 35-40Days after receiving advance payment |
Company Profile
FAQ Q: Are you a manufacturer or a trader?
A: We are a manufacturer, focusing on the R&D, production and sales of tricycles.
Q: What is your MOQ?
A: Our MOQ will be one 40HQ container. Depending on the model, the number of tricycles will range from 20 to 50.
Q: Can I buy a sample tricycle first?
A: Sorry, we cannot provide one or several sample tricycles.
Q: Can you customize tricycles?
A: Yes. We have a strong R&D team and can provide in-depth customization according to the actual needs of customers.
