High Torque Round Flange Electric Brushless DC Planetary Gear Outboard Boat Stepper Stepping Motor for Pump/Medical Equipment Controllable

Product Description

Product DescriptionBoat Stepper (Stepping) Motor DESCRIPTION

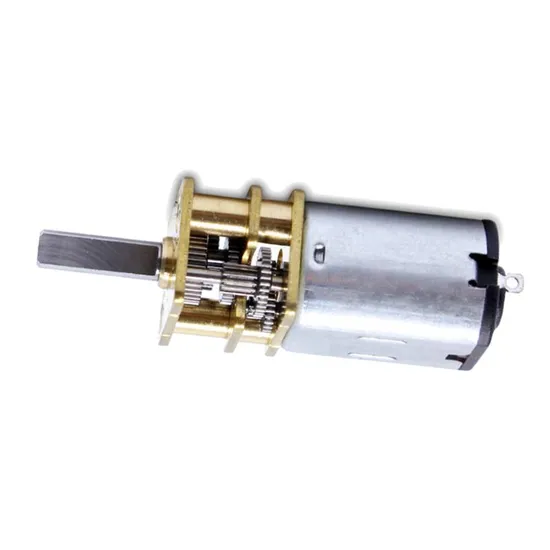

12ZYJ DC Gear Motor
Basic Info
Item			Data
Tem Rise			40K
Working Tem			(-20ºC~+80ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test			500VAC for 1min
Insulation Class			E
Weight			15g

Product ParametersThe drawing of 12mm N20 micro metal dc gear motor for robot(stepper motor/stepping motor)

Technical Parameters
PN	Rated Voltage	Initial Speed	Ratio	Power	Noload Speed	Noload Current	Rated Speed	Rated Current	Rated Torque	Stall Torque	Stall Current
	V DC	rpm	1:xxx	W	rpm	mA	rpm	mA	Kg.cm	Kg.cm	mA
12ZYJ-25A	3	7500	298	1	25	50	20	150	0.6	2	500
12ZYJ-150A	6	15000	100	1	150	50	120	150	0.3	1.5	500
12ZYJ-80A	6	20000	250	1	80	60	70	160	0.5	2	600

stepper motor/stepping motor application
Below are only some typical models, for more specification or a customed motor, pls contact us.
Our AdvantagesOur promise to our Customers(stepper motor/stepping motor):
1. Answer customer's inquiry within 2 working days.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.
Company ProfileAbout our company(stepper motor/stepping motor)
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements. Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.
Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others. Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.
Certifications(stepper motor/stepping motor)certificate
Packaging & ShippingTerms of Trade (stepper motor/stepping motor)

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Carton o plywood pallet.
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel
