US$400.00-800.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
CPS11E/CPS77/CPS11D/CPS11
Appliance
Food Analysis, Medical Research, Biochemistry
Certification
ISO9001, RoHS, CE, FCC
Measurement Range
pH 0 to 14
Process Temperature
-15 to 130
Process Pressure
Max. 11 Bar ABS at 100 °c
Material
Sensor Shaft: Peek Sealings: Ffkm
Temperature Sensor
Ntc300
Specification
according to the order code
Production Capacity
50000/Year
Packaging & Delivery
Package Size
30.00cm * 8.00cm * 8.00cm
Package Gross Weight
0.500kg
Product Description

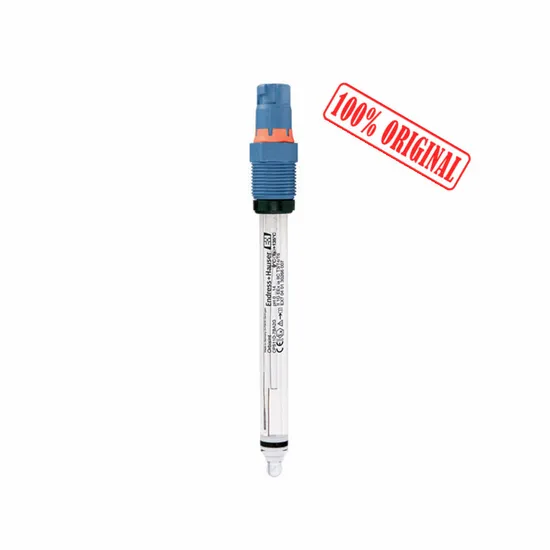

Field of Application Memosens CPS11E/CPS77E/CPS11D/CPS11 is the expert for hygienic applications. Its bacteria-proof reference with highly stable gel guarantees reliable measurements. The unbreakable sensor is sterilizable with hot steam, autoclavable, and assures the highest product safety. CPS77E features Memosens 2.0 digital technology, offering extended storage of calibration and process data for predictive maintenance. The sensor resists moisture and enables lab calibration, enhancing process integrity and increasing process uptime.
Hygienic and Sterile Applications: Food & beverage industry Life sciences Biotechnology With all relevant approvals for hygienic applications such as EHEDG, 3A, EU1935/2004, USP 87/88.
Benefits: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services. Unbreakable PEEK sensor body ensures the highest product safety where glass breakage is intolerable. With its certified biocompatibility and pharma compliance (optional Pharma CoC), the sensor protects the quality of your products. The sensor is suitable for hot steam sterilization and autoclaving offering long-term stable measurements. Low maintenance: ISFET technology is insensitive to temperature variations and shows virtually no acid or alkaline errors, allowing for long calibration intervals. Six times higher CIP stability compared to conventional ISFET pH sensors ensures a longer lifetime even when the sensor is exposed to cleaning in place. Maximum process safety: Non-contact inductive signal transmission eliminates all problems due to moisture or corrosion. Company Name: Shenzhen Anyi Technology Co., Ltd.
Shenzhen Anyi Technology Co., Ltd. Product Models Explore our range of common models:
CPS77E-AA6BBU2 CPS77E-GR6BBU2 CPS77E-1082/0 CPS77E-1014/0 CPS11E-AA7AAS2 CPS11E-AA7BAA2 CPS11E-GR7BAA2 CPS11E-10P3/0 CPS11E-AA7BTA2 CPS11E-AA7AAA2 CPS11E-BA7BTA2 CPS11E-GA7BTA2 CPS11D-7BA21 CPS11D-7BA41 CPS11D-7BT2G CPS11D-7BT2C CPS11D-7AA21 CPS11D-7BA2C CPS11D-7AA2C CPS11D-7BT21 CPS11D-7BT2C CPS11D-7BT2K CPS11D-7BA41 CPS11-2BA2ESA CPS11-2BA2ESK CPS11-1AA2GSA CPS11-1BA2GSA CPS11-D7BA21 CPS11-1AT2GSC CPS11-2BA2UAE CPS11-2AA2ESC
