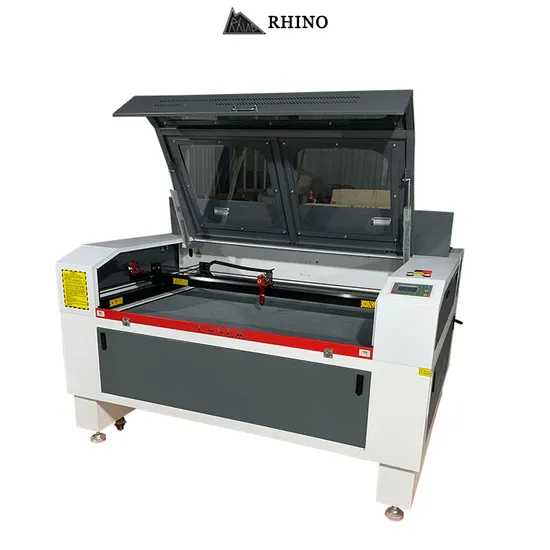

150W High Quality 1390 Wood Laser Cutter Cutting Engraving Machine
| US$2,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FCC3-1
Cooling System
Air Cooling
Technical Class
Pulse Laser
Automatic Grade
Automatic
Applicable Material
Metal
Type
Flat-Plate
Laser Classification
Solid Laser
Engraving Method
Vector Engraving
Keywords
CO2 Laser Cutting Machine
Laser Type
CO2 Sealed Glass Tube Laser, Water-Cooled, 10.6um
System Environment
XP/Win7/Win8/Win10
Laser Power
100W/130W/150W
Lifting Platform
Yes
Laser Head Blowin
Yes
Water Cut Protection
Yes
Control Configuration
DSP Offline System
Red Light Positioning
Yes
Data Transmission Interface
USB/Network Cable/USB Flash Drive
Cooling Method
USB/Network Cable/USB Flash Drive
Lifting Height
20cm
Laser Energy Control
1-100% Software/Machine Settings
Cutting Depth
0-30mm (Depending on Material and Laser Power)
Operating Temperature
5ºC-35ºC
Transport Package
Wooden Box
Specification
300kg
Trademark
RHINO
Origin
China
HS Code
8456110090
Production Capacity
3000sets/Year
Product Description
Parameter:
| Product Model: | 1390 | Laser power: | 150w | |
| Laser Type: | CO2 sealed glass tube laser, water-cooled, 10.6um | Supply voltage: | AC220±10% 50HZ AC110±10% 60Hz | |
| Working area: | 130x90cm | Lifting height: | 20cm | |
| Engraving scanning speed: | 0-60000mm/min | Cutting speed: | 0-36000mm/min | |
| Control Software: | RDworks (supports CDR/CAD output) | Laser energy control: | 1-100% software/machine settings | |
| Minimum form text: | chinese 2.0×2.0mm English 1.0×1.0mm | Cutting depth: | 0-30mm (depending on material and laser power) | |
| Positioning accuracy: | ≤±0.01mm | Operating Temperature: | 5ºC-35ºC | |
| Lifting platform: | Yes | Red light positioning: | Yes | |
| Laser head blowing: | Yes | Cellular Platforms: | Yes | |
| Water cut protection: | Yes | Power off: | support | |
| Hierarchical output: | backing | Slope engraving: | support | |
| Control Configuration: | DSP offline system | Data transmission interface: | USB/network cable/USB flash drive | |
| System Environment: | XP/Win7/win8/win10 | Cooling method: | USB/network cable/USB flash drive | |
| Supported graphic formats: | JPG/BMP/CDR/DXF/PLT/WMF and all other formats that CANDELRAW software can support | |||
| Machine dimensions and weight: | 200x138x108cm 400kg | |||
| Package size weight: | 213*148*126cm 450kg | |||
