China Energy-Saving Asphalt Mixing Plant Lb2000-160t/H Pavement Machinery

Product Description

China Energy-Saving Asphalt Mixing Plant LB2000-160T/h Pavement Machinery
Configuration selling point The machine features a modular structure, allowing for easy installation and transportation. It is equipped with an efficient vibrating screen, a boiling-type mixing unit, and a long-life energy-saving drying drum. Additionally, it is equipped with a bag dust removal configuration for improved energy efficiency and environmental protection.
Ease of maintenance and operation comfort The machine is equipped with a maintenance-free and efficient linear vibrating screen. The main unit is designed with a centralized lubrication system and the operating system features dual-machine dual-control automatic control, and one-touch startup.
Adaptability to diverse working conditions The machine's core components offer stable performance and reliable quality, making it well-suited for asphalt concrete pavement construction on highways, municipal roads, airports, and docks.
Safe and secure Directly shipped from the factory with after-sales service.Technical engineers and professional consultants can solve all your worries.
Product Parameters

Model	Capacity(Standard Conditions)	Mixer Capacity	Dust Remove Effect	Total Power	Fuel Consumption		Measurement Accuracy
					Fuel Oil	Fuel Coal
LB700	60t/h	750 kg	≤20 mg/Nm³	178kW	5.5-7 kg/t	10kg/t	Aggregate: ±0.5% Filler: ±0.25% Bitumen: ±0.25%
LB1000	80t/h	1000 kg	≤20 mg/Nm³	285kW	5.5-7 kg/t	10kg/t
LB1200	100t/h	1200 kg	≤20 mg/Nm³	316kW	5.5-7 kg/t	10kg/t
LB1500	120t/h	1500 kg	≤20 mg/Nm³	380kW	5.5-7 kg/t	10kg/t
LB2000	160t/h	2000 kg	≤20 mg/Nm³	470kW	5.5-7 kg/t	10kg/t
LB2500	200t/h	2500 kg	≤20 mg/Nm³	547kW	5.5-7 kg/t	10kg/t
LB3000	240t/h	3000 kg	≤20 mg/Nm³	700kW	5.5-7 kg/t	10kg/t
LB4000	300t/h	4000 kg	≤20 mg/Nm³	870kW	5.5-7 kg/t	10kg/t
LB5000	400t/h	5000 kg	≤20 mg/Nm³	960kW	5.5-7 kg/t	10kg/t

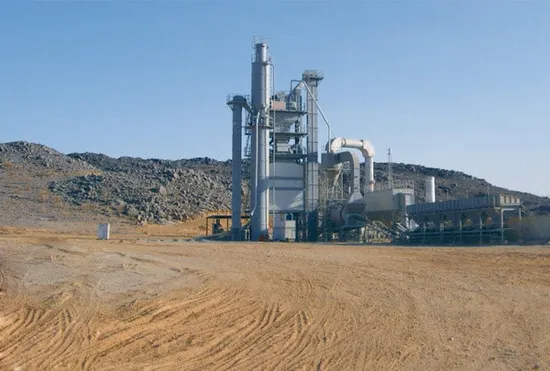

Detailed Photos
