Charcoal Extruder Machine Charcoal Maker Machine

Product Description

Agricultural Waste Coal Powder Sawdust Wood Charcoal Biomass Extruder Stick Briquette Press Making Machines Manufacturing Price Product Description

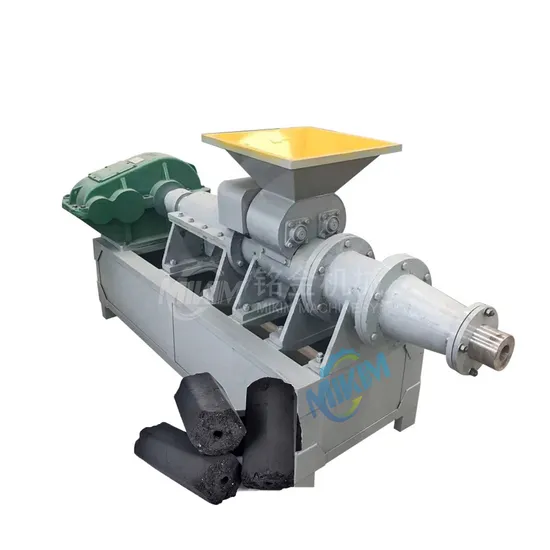

Extuding Type

This briquette machine capacity is smaller, but the working condition is stale. It could make different shape briquettes by changing mould, we also could match automatic cutter and conveyor for this machine, so it could work continuously, by adjusting cutter, it also could make different length briquettes.
Pressing Type
This briquette machine capacity is higher than pressing working type. Normally, this machine could make maximum briquettes length is 13cm, common length is 8-10cm. It also could make different shape briquettes by changing mould, the most popular shape is hexagon, round, square, honeycomb and etc.
Product Parameters

Model	Specification
140	Mold size:4-50mm Capacity:1-1.5 ton /h Power:11kw /22HP; Reducer:350JZQ Dimension:1960*1260*1080mm;Weight:560kg
160	Mold size:4-90mm Capacity:1.5 -2ton /h Power:15kw /22HP; Reducer:350JZQ Dimension:2120×1260×1080mm;Weight:660kg
180	Mold size:4-110mm Capacity:2-3ton /h Power:22kw /38HP; Reducer:400JZQ Dimension:2320×1660×1180mm;Weight:1260kg
Cutter machine	Conveyor for cutting finished charcoal rod Length can be customized

Product Application
Raw Material: *Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
*Material required: Moisture 8%-12%,size3-5mm
*If moisture>12% may need dryer,We have air flow dryer and drum dryer.
*If material size >5mm will need hammer mill or wood crusher.
*When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawdust forward,extrusion into a rod-shaped solid rod with center hole.
Application for Charcoal Briquette :
1. Used as bio fuels for boiler
2. For Stove, Home heating
3. Used BBQ charcoal for Barbecue
4. Fuels for Europe country Fireplace etc.
Our Advantages
1. The machine has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient
operation, small volume, less area, less work and electricity saving. 2. The designed automatic control electric heating device can adjust the dry humidity of the material randomly, ensure the stability of the material forming and improve the working efficiency. 3. The main parts of this product are specially treated with wear-resistant material, so it can be continuously pressed and durable.
4. It is suitable for the pressing and forming of various biomass raw materials, with less energy consumption and high production efficiency.
5. Three bearing the heart of the old machine is four, an increase of the machine stability and durability.
6. The old type of oil - based lubrication is oil immersion lubrication, as long as it is not short of oil, it can be used for many years.
7. Increase the pitch to increase the feed volume, thus greatly increase the output.
8. The structure of the molding cylinder is improved, the friction force between the machine and the raw material is reduced, and the density of the mandrel is increased.
Company Profile
Packaging & Shipping
FAQ
1. Who are we?
We are based in Tianjin, China, start from 2020,sell to South Asia(20.00%),South America(15.00%),North America(12.00%),DomesticMarket(10.00%),Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(2.00%),Southern Europe(1.00%). There aretotal about 101-200 people in our office.2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?
pellet mill,wood crusher,wood chipper shredder,floating feed extruder,feed mixer4. Why should you buy from us not from other suppliers?
Our MIKIM Machine adopt word-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high qualityand reliable of the Agriculture machinery and feed machinery After the unremitting efforts of all staffs ,5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU;Accepted Payment Currency:USD,EUR,AUD,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;Language Spoken:English,Chinese,Spanish
