Water Cooling Jacketed Screw Conveyor for Slurry and Sand

Product Description

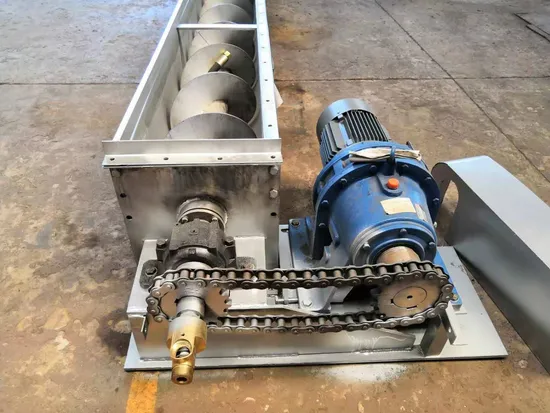

Screw conveyor with jacketed troughs and hollow auger used for drying slurries biomass Our heating and cooling screw conveyors indirectly transfer heat to or from the product by introducing a heat transfer medium such as cool water, hot oil or steam through a special trough jacket and/or the pipe and hollow flights of the screw conveyor. Achieving the specified exit temperature of the product is accomplished by calculating the surface area of the auger and designing the system flow to match the heat load requirements of the application. A properly designed system will be very cost-effective when compared to other heating and cooling screw conveyors. Ever Lucky Machinery designs and manufactures heating and cooling auger conveyors to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Power and Wastewater Treatment. Heat Transfer Screw Conveyors are referred to by many different names Ash Coolers Fly Ash Screw Conveyors Thermal Screw Conveyors Screw Conveyor Cooler Screw Heat Exchangers Cooling Screw Conveyors Hollow Flight Screws Heating Augers Cooling Augers
Screw conveyor classification:
According to screw conveyor drive classification
1. If the length of U-shaped screw conveyor is less than 35m, it is a single-axis driving screw.
2. If the length of U-shaped screw conveyor is greater than 35m, it is a two-axis driving screw.
According to the screw conveyor middle hanger bearing type 1. M1- is a rolling bearing, adopts type 80000 sealed bearing, and the shaft cap has a dust-proof sealing structure. It is commonly used in areas where it is difficult to refuel, no refueling, or oil contaminates the material. The sealing effect is good, and the hanging shaft has a long service life. Temperature of conveying material ≤ 80°C. 2. M2- is a sliding bearing, equipped with a dustproof sealing device, a cast copper tile, an alloy wear-resistant cast iron tile, and a copper-based graphite less oil-lubricated tile. Commonly used in the transmission of material temperature is relatively high (t ≥ 80 °C) or transport water containing larger materials.
According to screw conveyor material classification
1. Ordinary carbon steel U-shaped screw conveyors - Mainly used in industries where cement, coal, stone, etc. wear out, and there are no special requirements for materials.
2, stainless steel U-shaped screw conveyor - mainly applicable to food, chemical, food and other industries that have requirements for the delivery environment, cleanliness, and will not produce pollution on the material, the use of a long time, but the relatively high cost.
Equipment Features:
U-shaped screw conveyor is a kind of screw conveyor, which is suitable for small-scale operation, stable transmission, and can play a good role in the limited conditions of the transmission site. The sealing performance is good, and it has great advantages for occasions where the dust is large and where there are requirements for the environment, which can prevent the generation of dust in the conveying process. However, the U-shaped screw conveyor is not suitable for long-distance transportation. The manufacturing cost is larger than that of the belt conveyor, and it is easy for the fragile materials to be destructed.

LS type	100	160	200	250	315	400	500	630	800	1000	1250
GX type			200	250	300	400	500
Screw diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
Screw pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
Rotating speed(r/min)	140	120	90	90	75	75	60	60	45	35	30
Conveying capacity QΦ=0.33(m3/h)	2.2	7.6	11	22	36.4	66.1	93.1	160	223	304	458
Power Pd 1=10m(KW)	1.1	1.5	2.2	2.4	3.2	5.1	4.1	8.6	12	16	24.4
Power Pd 1=30m(KW)	1.6	2.8	3.2	5.3	8.4	11	15.3	25.9	36	48	73.3
Rotating speed(r/min)	120	90	75	75	60	60	45	45	35	30	20
Conveying capacity QΦ=0.33(m3/h)	1.9	5.7	18	18	29.1	52.9	69.8	125	174	261	305
Power Pd 1=10m(KW)	1.0	1.3	2.1	2.1	2.9	4.1	4.7	6.8	9.4	14.1	16.5
Power Pd 1=30m(KW)	1.5	2.3	4.5	4.5	7	8.9	11.6	20.4	28.3	42.2	49.5
Rotating speed(r/min)	90	75	60	60	45	45	35	35	30	20	16
Conveying capacity QΦ=0.33(m3/h)	1.4	4.8	15	15	21.8	39.6	54.3	97	149	174	244
Power Pd 1=10m(KW)	0.9	1.2	1.9	1.9	2.5	3.4	4.3	5.4	8.1	9.5	13.3
Power Pd 1=30m(KW)	1.2	2.2	3.8	3.8	5.4	6.8	9.2	16	24.4	28.6	39.9
Rotating speed(r/min)	75	60	45	45	35	35	30	30	20	16	13
Conveying capacity QΦ=0.33(m3/h)	1.2	3.8	11	11	17	31.7	46.5	73.0	99.3	139	199
Power Pd 1=10m(KW)	0.75	1.1	1.6	1.6	2.1	3.1	3.7	4.6	5.7	7.7	11
Power Pd 1=30m(KW)	1.1	1.8	3.4	3.4	4.4	5.6	8	14	16.7	23.2	33
