Top Brand Xe35 Xe35u Mini Crawler Excavator 3.5 Ton with 1.1cbm Bucket

Product Description

Product Description

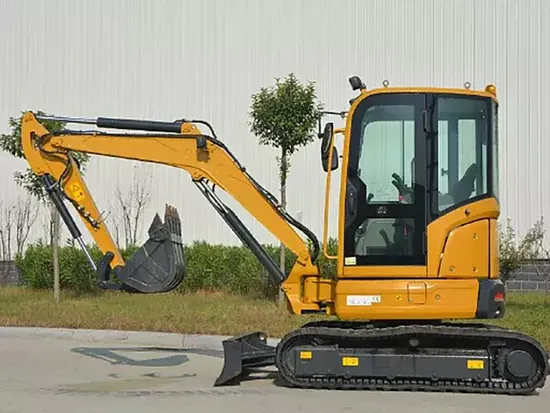

China Top Brand Crawler Excavator Xe35u

XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower,
transportation, municipal, garden, farmland transformation, oil pipelines, etc. Advantages and highlights: * More energy-conservation and environmental protection. By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost. * More efficient return Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily. * More reliable and durable Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.
Product Parameters

Model		Metric unit	XE35U
Operating weight		kg	4200
Bucket capacity		m3	0.11
Engine	Output power	kW/ r/min	21.6/2400
	torque/speed	N.m	107.2/1444
	Displacement	L	1.642
Main performance	Travel speed(H/L)	km/h	3.6/2.2
	Gradeability	%	58
	Rotating speed	r/min	8.5
	Ground pressure	kPa	36.6
	Bucket digging force	kN	24.6
	Arm crowd force	kN	17.8
Appearance size	Overall length	mm	4960
	Overall width	mm	1740
	Overall height	mm	2535
	Width of platform	mm	1585
	Length of crawler	mm	2220
	Overall width of chassis	mm	1740
	Width of crawler	mm	300
	Track length on ground	mm	1440
	Crawler gauge	mm	1721
	Clearance under counterweight	mm	587
	Min. ground clearance	mm	297
	Min. tail swing radius	mm	870
