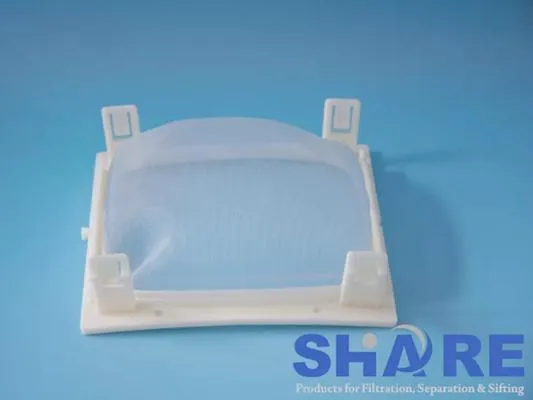

Square Proofer Cups Outsize 188.4X187.9mm with Coarse Gauze for Fermentation First Prover

Product Description

At Share Filters, our proofer cups are available in various of sizes. The rim's made of high-quality polypropylene, totally FDA and EU compliant. And inside, we've got either nylon mesh or polyester mesh, carefully chosen for just the right moisture, air, and heat flow. Both the mesh and rim are safe for direct contact with food.
Our proofer cups are built to last. We've got nylon filter mesh snugly held in place by injection-molded PP, making it super sturdy and durable. And when it comes to injection molding, we're pros. With over 20 years of experience and top-notch equipment, we can craft the perfect molded filter product for you, from start to finish. So, whether it's tooling or final products,

Advantage of Share Filters' Proofer Cup
Food Grade: both the mesh and rim are suitable for direct contact with foodstuff Cost Effective: many size availabe, save the cost of tooling User Friendly: designed for quick assembly and disassembly High Quality Materials: carefully selected materials with the best performence Mould Repellent: due to the design and use of high-quality materials

Technical Data

Product name:	Square bakery proofer cup	Rim material:	PP, PA, PE, etc.
Application:	Proofing or measuring dough	Mesh:	Nylon mesh, PET mesh
Length:	188.4mm, custom length	Micron rating:	From 100μm to 860μm
Width:	187.9mm, custom width	Color:	Customize
Depth:	50.4mm, custom depth	Package:	Plastic bag, master carton

Customization
We can also use other colors or materials instead of our available versions on request.
If the desired dimensions of the proofer cups are not included in our range, we can customize according to your specifications.
Product Pictures

Available Specifications of Share Filters' Proofer Cups

Nylon Filter Mesh Datasheet for Bakery Proofer Cup

Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 860/60	9	24	250	860	58	455	145
PA 700/49	10	25	300	700	49	576	195
PA 583/49	12	30	250	583	49	470	162
PA 533/41	12	30	300	533	41	585	234
PA 414/34	14	35	300	414	34	595	273
PA 425/46	16	40	200	425	46	370	139
PA 375/36	16	40	250	375	36	485	217
PA 350/49	20	50	150	350	49	375	98
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50

This just a part of specifications which common used.
Mesh count (n/cm), (n/in)
The mesh count stands for the number of openings per inch.

Mesh opening (μm)
The mesh opening w is the distance between two adjacent warp or weft thread.

Thread diameter (μm)
The thread diameter is measured on the thread before weaving.

Open area (%)
The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area
Other Moulded Filters for Food & Beverage Industry
Steps in The Making of a Custom-made Filter Element

Share Filters can take action at any stage of the custom filter element design process, either :
In consulting: which is the right filter media for a bag, a disc, a cartridge, a strainer ? In study: how to implement the filter mesh in a simple and economical way. Is it necessary to stitch, weld or inject? In production: prototyping, tooling, test and then mass production.
Factory Capabilities
Example of Application
What Share Filters Do?
Photos of Factory
Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.
Please connect with us now so we can learn more about your application and design specifications!
FAQ
Are You Factory or Trade Company ?
We're factory, and manufacture our products in-house.
Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.
Which Port You Ship?
Ningbo port.
Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.
What's Your Payment Term ?
T/T, LC, PayPal, and others.
What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.
What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.
Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
How To Delivery the Order?
Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
