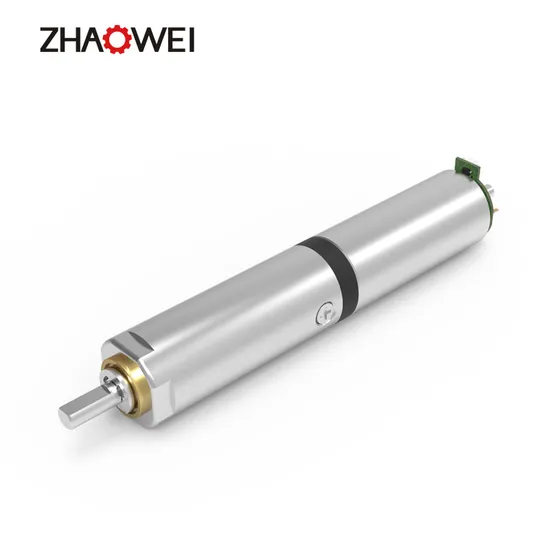

2021 Factory OEM 6mm 9mm 3V 6 Volt DC Coreless Planetary 20mm DC Mini Geared Motor Cheap with Encoders for Sweeping Robot

Product Description

Product Description Model: ZWBMD006006-711
Rated Voltage: 3V
No Load Speed: 26rpm
No load current: 40mA
Rated Speed: 22rpm
Rated Current: 100mA
Rated Torque: 296.9g.cm
Overall Length : 30.9mm
Rated Torque of Gear Box: 330g.cm
Instant Torque of Gear Box: 800g.cm
Gear Ratio: 711:1
Gear Box Length: 16.9mm

Specifications:

Model	Application Parameters								Rated Torque of Gear Box	Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA	rpm	mA	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBMD006006-110	3.0	166	37	140	100	54.3	5.33	28.5	330	800	110.6	14.5
ZWBMD006006-148	3.0	124	37	105	100	72.8	7.14	28.5	330	800	148.1	14.5
ZWBMD006006-198	3.0	93	37	78	100	97.5	9.56	28.5	330	800	198.4	14.5
ZWBMD006006-266	3.0	69	37	58	100	130.5	12.80	28.5	330	800	265.7	14.5
ZWBMD006006-531	3.0	35	40	29	100	221.7	21.74	30.9	330	800	530.8	16.9
ZWBMD006006-711	3.0	26	40	21	100	296.9	29.12	30.9	330	800	711.0	16.9
ZWBMD006006-952	3.0	19	40	16	95	330	32.36	30.9	330	800	952.2	16.9
ZWBMD006006-1275	3.0	14	40	12	85	330	32.36	30.9	330	800	1275.2	16.9
ZWBMD006006-1708	3.0	11	40	10	75	330	32.36	30.9	330	800	1707.9	16.9

above specifications just for reference and customizable according to requirements.
Please let us know your requirements and we will provide you with micro transmission solutions.
2D Drawing
Detailed Photos
Application

Smart wearable devices	watch,VR,AR,XR and etc.
Household application	kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment	5G base station,video conference,mobile phone and etc.
Office automation equipments	scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products	conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments	blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials	flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools	electric drill, screwdriver,garden tool and etc.
Precision instruments	optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care	tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics	camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots	educational robot, programming robot, medical robot, escort robot and etc.

Company Profile Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
Workshop
Testing Equipment
1) Competitive Advantages
1) Competitive Advantages
19+year experience in manufacturing motor gearbox
We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
Competitive Price
Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted 2) Main Products
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
Customized worm and gear transmission machinery; Precise electromechanical motion module; Precise component and assembly of plastic and metal powder injection.
Our Services ODM & OEM Gearbox design and development Related technology support Micro drive gearbox custom solution Packaging & Shipping 1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Certifications Certifications
We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).
and more...
FAQ FAQ
1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have
many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you
need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry
