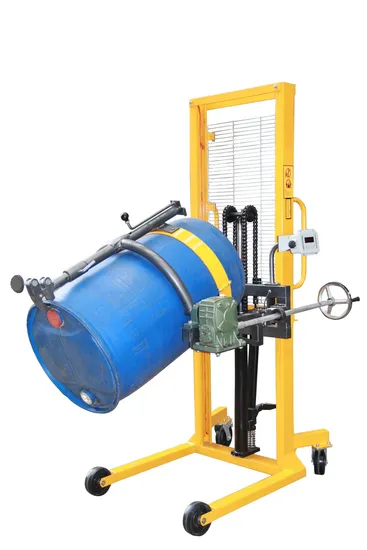

Automatic Battery Powered Electric Stacker Reach Semi-Electric Oil Drum Stacker

Product Description

Product Description
★High-quality hydraulic pump station is selected, with strong power, maintenance-free battery, and long-lasting power.
★The 6mm "C" type door frame manufactured by special rolling process is firm and safe.
★The design structure of the oil drum truck is simple and lightweight, and the operation is simple and labor-saving.
★High-quality oil cylinder, fast lifting speed, lifting height can reach 1600mm, electric 360-degree turning.
★Suitable for handling, loading and unloading, and dumping of liquid liquids such as chemical industry, food workshop, dyes, coatings, adhesives, petroleum, cooking oil, etc.
technical parameter
Type number YL500B
Rated load (KG) 500
Net weight (KG) 250
Electric rise √
Electric flipping √
Talking mouth style √
Front wheel specification (nylon wheel) (mm) 150×50
Rear wheel specification (nylon wheel) (mm) 150×50
Inner and outer width of front leg (mm) 640, 800
Length of front leg (mm) 730
Whole vehicle (length×width×height) (mm) 1300×950×2060
Minimum turning radius (mm) 1850
Pump station power (kw/h) 1.6
Battery parameters (V/AH) 12/120
Smart charger (V) 12
Maximum lifting height (mm) 1600
Lifting speed (mm/s) 120
Flip speed 360°/60s
