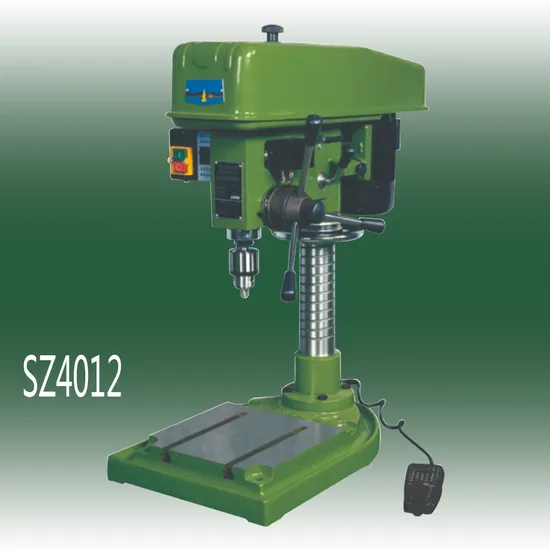

High Speed Vertical Drilling and Tapping Bench Drill Sz4012 Metal Heavy Duty Cast Iron Steel Tapper Machine M10 M8
| US$734.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZ4012
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
400W
Max Drilling Capacity
12 mm
Transport Package
Wooden Case
Specification
79x45x78cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | ZS4120 | SZ4012 | SZ4112 |
| Max.tapping capacity(Cast iron/Steel) | M16 | M10/M8 | M10/M8 |
| Max Drilling capacity | 20mm | 12mm | 12mm |
| Diameter of column | 85mm | 70mm | 70mm |
| Spindle travel | 125mm | 100mm | 100mm |
| Distance spindle axis to column surface | 240mm | 193mm | 193mm |
| Max distance spindle nose to worktable | 355mm | 326mm | |
| Max.distance spindle nose to base | 615mm | 326mm | 556mm |
| Spindle taper | MT.2 | B16 | B16 |
| Spindle speeds range | 235-2050rpm | 480-1400rpm | 480-1400rpm |
| Spindle speeds | 5 | 3 | 3 |
| Dimension of worktable surface | 280x300mm | 200x230mm | |
| Dimension of base worktable surface | 315x335mm | 280x260mm | 280x260mm |
| Overall height | 1127mm | 870mm | 1037mm |
| Motor | 750W | 400W | 400W |
| G.W./N.W. | 155/140kg | 100/75kg | 105/95kg |
| Ship measurement | 85x54x102cm | 79x45x78cm | 79x45x95cm |
