High-Efficiency Hydraulic Cold Roll Forming Machine for Roofing Panels

Product Description

Product Description

Product Parameters

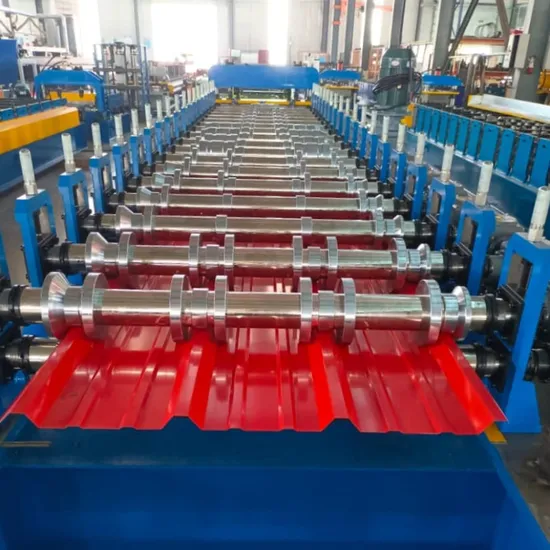

The machine is composed of the Frame, PLC control system, hydraulic station, and automatic shearing system.The tile/roof produced are flat and beautiful in appearance, uniform in paint pattern, and are widely used in industrial and civil buildings, such as houses, warehouses, garages, hangars, gymnasiums, exhibition halls, theaters and other room surfaces and walls.

specification

Name	IBR 840metal roofing panels roll forming making machine roofing wall sheets
Material thickness	0.3-0.8mm
Frame Design	350H steel
Roll Stages	14-15 stages
Material Of Forming Roller	45# steel CNC Iathes Hard Chrome Coated
Shafts Diameter	70mm
Thickness Of Middle plate	16mm
Main Motor Power	4KW
Speed	13-15M/min
Electric Standard	380V/50HZ/3PH or as your need
Color of Machine	Blue or as your requirements

Product Composition
This machine is special equipment for rolling metal/steel coils,processing withdecoiling , continuously roll forming, automatic length/quantity to cut for customer's request. Whole unit with PLC control,AC variable frequency speed regulation technology for automatic roof profiling production, that would be the ideal equipment for cold steel roll forming and steel structure.

Feeding device
With handwheels for easy adjustable


Hydraulic cutting device
Strong cutting,good finished product shape

PLC
Adopted touch screen for easy operation.Adopted aviation plugs for easy installation.

Hydraulic station
updated type,low noise and cooling fan for long service time.
