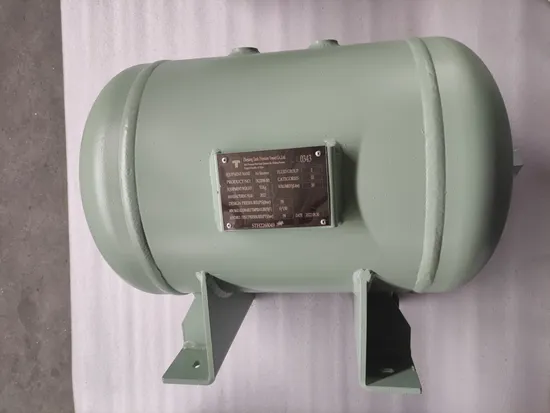

Horizontal Air Tanks with PED Certificate
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
air receiver
Function
Storage Pressure Vessel
Application
Gas
Material
Carbon Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Corrosion Allowance
1mm
Default Color Number
Ral 7035
Paint Thickness
120μm
Transport Package
Wooden Boxes
Specification
22L
Trademark
TK
Origin
China
HS Code
73110090
Production Capacity
10000
Product Description
| CODE:ASME SECT.VIII DIV.1 2021 EDITION |
| Code Certification:ASME design +PED certified |
| Operating Pressure : 0.9MPa |
| Design Pressure :1MPa |
| Temperature: -20-150ºC |
| Minimum design metal temperature(MDMT) at MAWP:-20ºC at 1MPa |
| Hydrostatic test pressure:1.43MPa at 0-48ºC |
| Medium name:compressed air |
| Corrosion allowance:1mm |
| Gross volume:0.062m³ |
| Empty weight:75kg |
Zhejiang tank pressure vessel Co., Ltd. is a manufacturer specializing in the production of customized pressure vessels, we have ASME U and UM stamp authorization, and has obtained ISO9001-2015 quality system certification and PED Module H and Module H1 certificates issued by LRQA.
Standards or specifications that our products can comply with:
| Product category | Design Code | Certifications |
| Air Receiver | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Liquid Receiver | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Separator | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Adsorption Tank | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Heat Exchangers | ASME VIII-1/GB150/GB151 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
