Toothpaste Making Machine Mixer Cosmetic Cream Vacuum Emulsifying Mixer

Product Description

Product Description oothpaste Making Machine Mixer Cosmetic Cream Vacuum Emulsifying Mixer
What is the toothpaste emulsifying mixing machine?
A toothpaste vacuum emulsifying mixing machine is a specialized type of equipment used in the manufacturing process of toothpaste. It combines the functions of mixing, emulsifying, and homogenizing ingredients to create a smooth and stable toothpaste formulation. Here's a breakdown of its key features and processes:
Vacuum system: The machine is equipped with a vacuum system that helps remove air bubbles from the toothpaste mixture. This is crucial for achieving a smooth and consistent product texture.
Emulsification: Emulsifying agents are often used in toothpaste formulations to combine water-based and oil-based ingredients. The vacuum emulsifying mixing machine creates a stable emulsion by thoroughly blending these ingredients under vacuum conditions.
Mixing and homogenizing: The machine has high-speed rotating blades or agitators that effectively mix and homogenize the toothpaste ingredients. This process ensures a uniform distribution of particles throughout the formulation, preventing ingredient separation or settling.
Heating and cooling: The toothpaste mixture may require heating to melt certain components or adjust the viscosity. Similarly, cooling mechanisms can be incorporated to reduce the temperature quickly after heating. The machine typically includes a jacket or a heating/cooling system to control the temperature during the process.
Control panel: Modern toothpaste vacuum emulsifying mixing machines feature a user-friendly control panel. Operators can set and monitor various parameters such as speed, temperature, and vacuum level to achieve the desired toothpaste consistency and quality.
Overall, a toothpaste vacuum emulsifying mixing machine simplifies and automates the production process, ensuring efficient and consistent results. It optimizes the emulsification, mixing, and homogenization stages while maintaining strict quality control and hygiene standards.

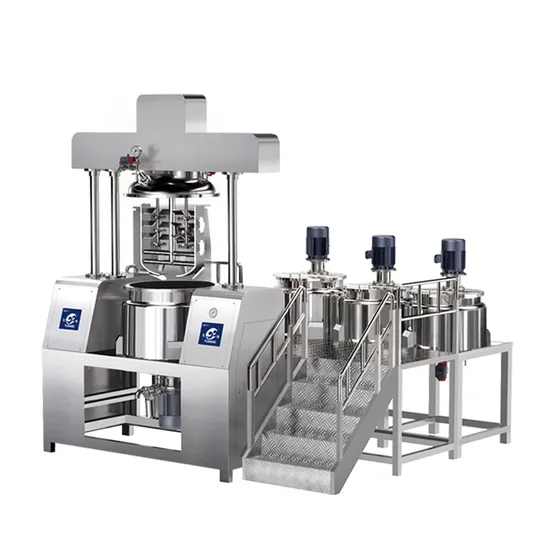

This machine is vacuum emulsifying mixer.It is a processing equipment with mixing, homogenizing, emulsifying,heating fuction, etc.The machine is widely used to produce cosmetic cream,lotion,as well as food cream,paste ,etc.It is the first choice of cosmetic factory which manufacture high quality products. The machine adopts the component of international famous brands, which ensure durable quality and operational stability of the machine. According to the feedback from our customers, this design style provides great satisfaction performance to them.This device is mainly composed of Water phase pot, Oil phase pot, Emulsifying pot, Vacuum system, Lifting system(optional), Electric control system, Operation platform etc.

Name	Frame-wall scrapping oar	Homogenizer	heating for main pot	heating for oil pot	heating for water pot	disperser of oil pot	disperser of water pot	vacuum Pump	hydraulic lifting
50L	1.1kw	2.2kw	3	3	6	0.37	0.37	0.75 kw	0.55
100L	1.5kw	3--4kw	6	6	6	0.55	0.55	1.5kw	0.75
200L	3kw	5.5kw	9	9	12	0.75	0.75	1.5kw	0.75-1.1
300L	3--4kw	5.5kw	9	12	12	1.1	1.1	2.2kw	1.5
500L	4kw	7.5kw	12	18	18	1.5	1.5	2.2kw	1.5
800L/1000L	5.5kw	11kw	18	18	27	1.5	2.2	4kw	2.2
2000L	7.5kw	15kw	27	27	36	2.2	2.2	4kw	2.2
3000L	15KW	22KW	27	27	36	3	3	7.5	2.2

Vacuum Emulsifying Mixer Features
SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products. Mechanical sealing, good sealing effect and long working life. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards. Material contact parts all use SUS316L stainless steel. The heating method mainly include electric or steam heating for customer's choice. Advanced PLC touch screen control is optional. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
Advantage
It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Founded in 2000, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manafacturing, sales and service. Advanced production equipments are the guarantee for high quality products.
Our product catagories mainly include: Vacuum emulsifying mixer, Liquid washing mixer, Water treatment equipment, Perfume machine, Filling machine, Packing machine, Labeling machine etc. We are able to supply a wide range of high quality products for your One-stop sourcing in our exhibition center.
We attend exhibitions all around the word every year.You are welcomed to see our product and new designed item there .We hope a face to face communicate and service could helpful to our cooperation.
When we make delivery ,the products will be packed in wooden case to avoid of destroy.
A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.
FAQ 1 .Q Do you accept a special order?
A: Yes, we do; We can manufacture all kinds of chemical equipment according to your technical drawings;
2.Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quote for you as soon as possible;
3.Q: Do you have one in stock?
A:Sorry, we don't. All products are manufactured according to customer's requirement;
4.Q: Can you make a design for us?
A:Yes, we can. What we supply is not only product but also solution and design;
5.Q:Can your engineer come to our place for installation guides?
A:Yes, we can. We will provide a video and document for installation; If you still have problems we will send our engineer oversea for installation guide;
For your inquiries, please kindly let us know:
1. What is your products? Cream, toothpaste, moisturizer, night cream, vanishing cream, suncream etc.
2. What is the capacity do you want for this vacuum emulsifying machine? 100L, 200L, 300L, 500L, 1000L, etc.
3. Required heating method: electric heating or steam heating?
4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?
5. Requirement of Certificate (CE or no need)
