10 Tons New Truck Portable Unloading Loading Ramps for Hot Sale

Product Description

Product Description

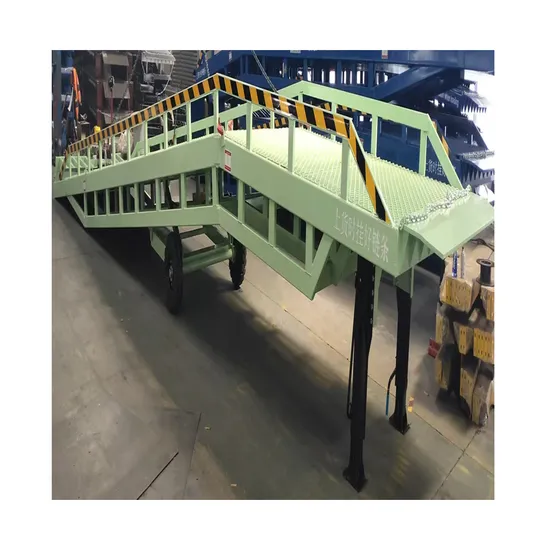

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design of the mobile boarding bridge allows goods to be easily transported from the ground to the truck, or unloaded from the truck to the ground, which greatly improves the efficiency of logistics and transportation.
Maximum Lifting Capacity: Our Hot selling large tonnage mobile boarding bridge mobile hydraulic dock ramp Mobile boarding bridge has a maximum lifting load of 15 tons, making it suitable for heavy-duty applications in various industries such as building material shops, manufacturing plants, machinery repair shops, and food & beverage factories. Reliability and Durability: With a 1-year warranty on the core components, including the engine, gear, bearing, gearbox, and motor, our product ensures long-lasting performance and minimal maintenance requirements. Convenience and Safety: Our mobile boarding bridge features a hydraulic dock ramp, allowing for easy and safe loading and unloading of goods, making it an ideal solution for users who value convenience and efficiency. Compliance and Certifications: Our product meets all necessary safety and quality standards, and we provide a machinery test report to ensure compliance with regulatory requirements. User-Friendly: As a user mentioned, "I'm looking for a reliable and easy-to-use mobile boarding bridge for my food & beverage factory", our product is designed to meet such needs, with a user-friendly interface and a comprehensive instruction manual provided.

Model	DCQY-6	DCQY-8	DCQY-10	DCQY-12	DCQY-15
Overall size	11300*2100	11300*2100	11300*2100	11300*2100	11300*2100
Slope length	7150mm (L)	7150mm (L)	7150mm (L)	7150mm (L)	7150mm (L)
Platform pate length	3000mm (L)	3000mm(L)	3000mm (L)	3000mm (L)	3000mm (L)
The tail plate length	750mm	750mm	750mm	750mm	750mm
The tongue plate length	400mm	400mm	400mm	400mm	400mm
Width	2100mm	2100mm	2100mm	2100mm	2100mm
Steel plate thickness	3mm	3mm	3mm	3mm	3mm
Steel mesh thickness	8mm	8mm	8mm	8mm	8mm
Load	6t	8t	10t	12t	15t
Distribution power	Manual hydraulic pump, and hand leg	Manual hydraulic pump, and hand leg	Manual hydraulic pump, and hand leg	Manual hydraulic pump, and hand leg+ 2 auxiliary legs	Manual hydraulic pump, 2 hand legs+ 2 auxiliary legs
Adjustable range	1100-1800mm	1100-1800mm	1100-1800mm	1100-1800mm	1100-1800mm
Guardrail high	200mm	200mm	200mm	200mm	200mm
Main beam	160*80*4mm rectangular pipe 4 main beams	160*80*4mm rectangular pipe 4 main beams	160*80*4mm rectangular pipe 4 main beams	200*100*5mm rectangular pipe2 pcs 200*100*4mm rectangular pipe3 pcs, Total 5 main beams	200*100*6mm rectangular pipe,4pcs 200*100*6mm rectangular pipe,1pcs Total 5 main beams
Vice beam	100*50*4mm	100*50*4mm	100*50*4mm	100*50*4mm	120*60*5mm
Hydraulic cylinder	Φ80*Φ45 (2 pcs)	Φ80*Φ45 (2 pcs)	Φ80*Φ45 (2 pcs)	Φ80*Φ45 (2 pcs)	Φ80*Φ45 (2 pcs)
Hydraulic oil pipe	32Pma	32Pma	32Pma	32Pma	32Pma
Soild trip	600-9	600-9	600-9	600-9	600-9
Container connectivity	The bridge body is welded with a hook and fixed with a steel chain
Paint color	Generally blue(adjustable); spray-paint
Overall wight	±2200kg	±2400kg	±2600kg	±3300kg	±4000kg

FEATURES
1. Convenience: The mobile boarding bridge adopts a modular design, which is easy to install and can be quickly built without professionals. Its foldable and mobile nature allows it to be quickly deployed in different locations and adapt to a variety of complex logistics environments.
2. Safety: The mobile boarding bridge is equipped with anti-skid, anti-overturning and other safety devices to ensure the stability of the goods during transportation. Its load-bearing capacity is strong, can withstand the load needs of trucks of various specifications, and is well-known for the safety of cargo transportation.
3. High efficiency: The mobile boarding bridge can realize the rapid docking of goods and trucks, reducing the time and cost of manual handling. Its convenient operation also improves the overall efficiency of logistics operations.
APPLICATION
Recommended Products
Company Profile
Packaging & Shipping
FAQ
Q:What's the information should I provide when inquiry?
More details or drawings,better. A: life capacity B:span C:lift height D: crane traveling distance E: power source
Q: What is your minimum order quantity?
A: 1 set;
Q: What is your package?
A: The main body is packaged with plywood boxes or plastic woven fabrics; Spare parts inside the plywood box;
Q: What is your delivery cycle time?
A: Within 10/25/40 days after receiving the advance payment; The specific deadline shall be based on the detailed requirements and actual deadline;
Q: Do you provide lifting accessories?
A: Yes, we can provide any type of crane accessories, such as hooks, grab buckets, magnets, pulley blocks, hooks, locks, wire ropes, fiber ropes, etc.
Q: Do you provide custom service codes?
A: Yes, our factory supports OEM/ODM services.
