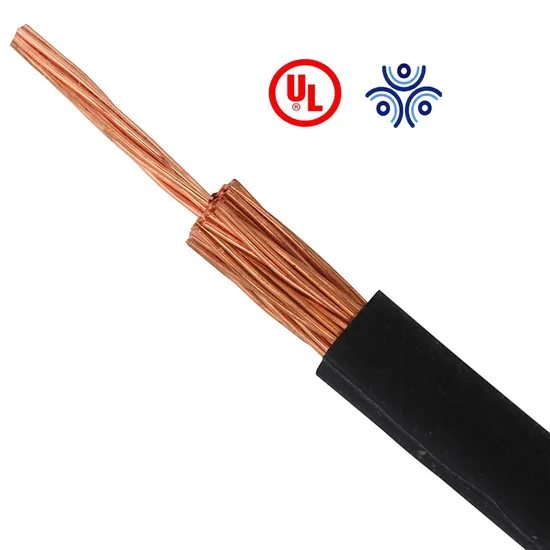

UL1063 Machine Tool Wire and Cable Type Mtw Hook up Single-Conductor PVC Insulation Electric Stranded Flexible Nylon Sheath
Basic Info.
Model NO.
MTW
Application
Indoor
Conductor Material
Copper
Sheath Material
None
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, RoHS
Brand
Rneda
Certificate
UL
Voltage
600V
Insulation Color
Blue,Red, Green,Yellow,Blank and So on
Sheath
Nylon
Transport Package
Roll or Drum
Specification
18AWG
Trademark
Huatong
Origin
China
HS Code
8544492100
Production Capacity
1000km/Month
Product Description
UL1063 Machine Tool Wires and Cables Type MTW Hook up Single-Conductor Insulation ElectricFeatures:
Sunlight, ozone, and UV resistant
Moisture resistant
RoHS compliant
REACH compliant
-40°C to +105°C temperature range
Construction:
A
conductor: copper or tinned copper
insulation: PVC-105
voltage:600v
B
conductor: copper or tinned copper
insulation: PVC-105
sheath: Nylon
voltage:600v
Machine Tool Wire is a stranded flexible hook-up wire. MTW is used for the internal wiring of appliances, including Air Conditioners, Automatic Washers, Refrigeration Equipment, Control Cabinets, and other building applications.
Wire can supply Machine Tool Wire with a PVC insulation offering Moisture and Oil Resistance while meeting the VW-1 Flame Test, or with Nylon jacketed PVC insulation offering Moisture, Oil, and Gasoline Resistance.
