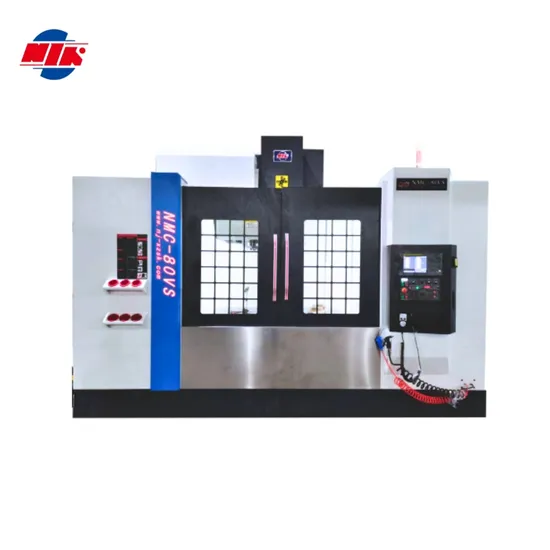

Vdls850 12000rpm Dalian Xinzhe 4 Axis Vmc CNC Machine Center Vertical Machining Center Lathe Machine CNC Machine Milling Machine Tools Machinery Tool CNC Lathe
| US$10,000.00-200,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NMC-80VS
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Workable Size
1700*800
T-Slot
5-22*145
X/Y /Z Axis Travelling
1500/800/750
X/Y/Z Guideway Type
Linear Rolling Guide
X/Y/Z Fast Move Speed
20/20/12
Cutting Feed Speed Range
8000
Spindle Motor Power
15/18.5kw
Shank Form
Bt50
Exchange Tool Type
Side-Mounted Mechanical Arm
Electricity Demand
30 kVA
Max Weight of Tool
15 Kg
Max. Worktable Loading
1500 Kg
X/Y/Z Servo Motor Power
3/3/3
Tool Magazine Capacity
24
Max Speed of Spindle
8000/6000
Transport Package
Suitable for Sea Shipping
Specification
3924*2658*3020
Trademark
XINZHE
Origin
Nanjing, China
HS Code
84571010
Production Capacity
200sets/Year
Product Description
TECHNICAL SPECIFICATIONS:
| Control system | FANUC 0i-MF |
| Item | NMC-80VS |
| Workable size(L*W) mm | 1700*800 |
| T-slot(No.-W×D)mm | 5-22*145 |
| Max. Worktable loading kg | 1500 |
| The dis. From Spindle center to Beam guideway mm | 871 |
| The plane dis. From spindle end to worktable mm | 130-880 |
| X/Y /Z axis travelling mm | 1500/800/750 |
| X/Y/Z guideway type | Linear Rolling Guide |
| X/Y/Z fast move speed m/min | 20/20/12 |
| Cutting feed speed range mm/min | 1-8000 |
| X/Y/Z servo motor Power kW | 2003/3/3 |
| Spindle motor power kW | 15/18.5kW |
| Max speed of spindle r/min | 8000/6000 |
| Tool magazine capacity/form | 24 |
| Shank form | BT50 |
| Max weight of tool kg | 15 |
| Max diameter/length of tool mm | Ø115,Ø160/350 |
| Exchange tool time(Tool to Tool) Sec | 4 |
| Exchange tool type | Side-mounted mechanical arm |
| X/Y/Z axis position accuracy mm | ±0.006 |
| X/Y/Z axis repeat position accuracy mm | ±0.004 |
| Air pressure kg/cm | 6~8 |
| Electricity demand kVA | 30 |
| Machine size(L×W*H) mm | 3924*2658*3020 |
| Machine weight kg | 12000 |
Detailed Photos
Packaging & Shipping
Exhibition Show
Company Profile
After Sales Service
CERTIFICATIONS
FAQ
| FAQ | |
| Q1 A1 | How can I choose the most suitable machines ? If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you. If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you. |
| Q2 A2 | Where is our factory located? How can I visit there? Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory. |
| Q3 A3 | How is the warranty? We will supply standard ports and accessories with our machine when shipment. Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge. |
| Q4 A4 | Do you have a stock? Our Chinese market order is very good, we have many machines produce everyday and delivery everyday. Our fastest delivery time for 1~5 sets will be within one month. |
| Q5 A5 | How about your quality? We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system. Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. |
| Q6 A6 | Do you have professional engineers? Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality. |
| Q7 A7 | What is the package? Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation. |
| Q8 A8 | What's your main products of your company? We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool . |
| Q9 A9 | What's the MOQ? One set. The big discount will start from three sets. |
| Q10 A10 | What's the Payment Terms ? T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation. |
| Q11 A11 | What is the charge of installing and commissioning? Most of machines you can install well according to our drawing. For some machines, it need our technician to go to your local site and help you install and commission machines. At the same time, our technician will train your workers, it will table about 7~15days for different machines. The return air-tickets, accommodation, food, salary (USD150.00/day for each technician), etc will be born by the end-user. |
