Outdoor Stage Performance P2.9 P3.9 P4.8mm High Brightness Full Color Outdoor Rental LED Display Screen Panel

Outdoor Stage Performance P2.9 P3.9 P4.8mm High Brightness Full Color Outdoor Rental LED Display Screen Panel

US$188.00-289.00 1 Piece (MOQ)

Basic Info.

Model NO.
X1pro
Pixel Pitch
2.976mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
300W / m²
Pixel Density
112896 Dots/Sqm
Scanning Mode
1/28 Scan
Display Type
Image & Text Display
Application
Stage Performance
Certification
CE, RoHS, CCC, ETL
Cabinet Size
500mmx500mm
Cabinet Material
Die-Casting Aluminum
Protective Grade
IP65 Waterproof
Screen Brightness
4500nits~5500 Nits
LED Type
SMD1415
Refresh Rate
1920Hz
Certisficate
CE /RoHS /CCC/FCC/EMC/ETL
Maintenance
Rear Service
Controller
Nova
Avg.Power Consumption
300W /Sqm
Max.Power Consumption
780W / Sqm
Life Span
Over 100000 Hours
Transport Package
Flight Case
Specification
106*73*73cm
Trademark
CKGLED
Origin
China
HS Code
8528591090
Production Capacity
6000sqm/Month

Product Description

Product Description

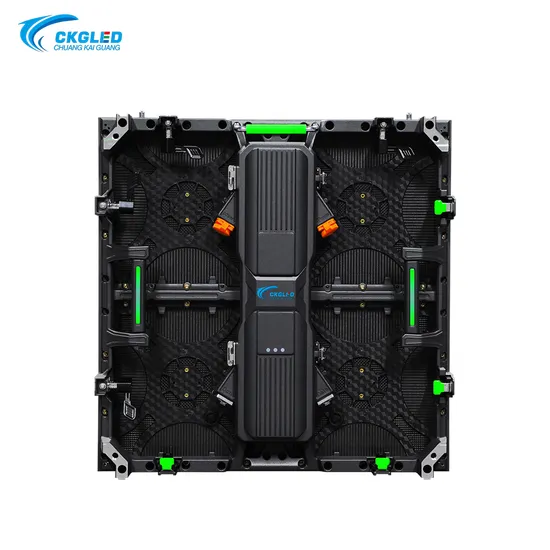

Two compatible cabinets: 500x500mm and 500x1000mm for option.

Angle adjustment: adjustable within -15°- +15°.

Automatical calibration: avoid complicated and time-consuming work,no need debugging after changing led modules.

Fast connection: easy and strong stainless steel locking system.

Detailed Photos

Product Parameters
NO.
Parameter
Specifications
1
Model
X1
2
Pixel Pitch(mm)
2.976
3
LED
SMD1415
4
Screen Resolution (Pixels / m2)
112896
5
Drive Method (Scan)
1/28
6
Cabinet size(L*H)
500mm X 500mm
7
Cabinet(Kg)
7.3KG
8
Viewing angle
H:140° V:140°
9
Grey Scale
14bit
10
Refresh rate(HZ)
1920
11
Module size(mm)
250*250
12
Brightness(nits)
≥4500
13
Working Voltage(V)
AC 100~240V
14
AVE. power consumption (W/m2)
300
15
MAX. power consumption(W/m2)
780
16
IP grade
IP65 waterproof
17
controller
Nova
18
Working humidity
10~95%RH
19
Storage humidity
10~90%RH
20
Working temperature
-30ºC~60ºC
21
Storage temperature
-30ºC~70ºC
22
Compliance
CE / RoHS / FCC
Certifications
Packaging & Shipping


Project Case

Service
Pre-producing

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution 4. Customized design
In producing
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
After service
1. 2 years free maintenance
2. 7 days a week, 24 hours a day on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
FAQ
Q1. Could I get a sample order of led display?A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products? A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?A: Yes, we offer 2 year warranty for our products in copper wire led and 3 years warranty for our gold wire product.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can reply on us

Q5: Do you have any MOQ limit for led display order?
A: No MOQ, 1pc order for sample checking is available.

Q6: How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea and by air. It usually takes 3-7 days by air to arrive, 15-30 days by sea.
