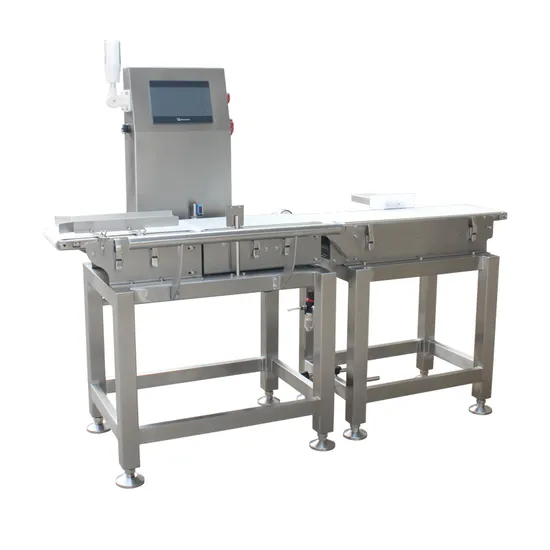

Product DescriptionAutomatic Online Weighing and Checkweigher Smart Weight System
A checkweigher is a type of industrial scale used to automatically check the weight of products as they move along a production line. It ensures that each product meets the required weight specifications, helping manufacturers maintain quality control.
The device works by weighing each item passing through it and comparing the actual weight against pre-set limits. If the weight is within the acceptable range, the item continues down the line; if it is too light or too heavy, it can be rejected for further inspection. This helps in preventing underfilled or overfilled products from reaching consumers, thus ensuring product consistency and compliance with regulations.
Product Application
Product Feature1.Optional 7-inch and 10-inch touch screen for easy operation
2.Able to store 100 sets of parameters for different products
3.Data like number of qualified and unqualified products can be recorded and exported via USB
4.Infrared sensor makes detection more accurate5.The whole machine is made of SUS 304
6.Adjustable speed, different sizes can be chosen
7.Factory is ISO9001 certified, machine is CE and RoHS certified, belt is FDA certified
Product Parameters

Model		CW-120	CW-150	CW-200	CW-300	CW-400	CW-500	CW-600
Single Weighing Scope		≤100g	≤200g	≤1000g	≤3000g	≤20kg	≤40kg	≤40kg
Accuracy		±0.2g~±0.5g	±0.2g~±0.5g	±0.3g~±1g	±0.5g~±3g	±1g~±5g	±5g~±20g	±5g~±20g
Minimum Scale		0.01g	0.1g	0.1g	0.1g	1g	1g	1g
Conveying Speed		10-80m/min	10-80m/min	10-80m/min	10-70m/min	10-60m/min	10-50m/min	10-50m/min
Max Speed		200pcs/min	180pcs/min	160pcs/min	80pcs/min	60pcs/min	40pcs/min	35pcs/min
Products to be Weighed	Length	≤100mm	≤150mm	≤300mm	≤350mm	≤500mm	≤650mm	≤650mm
	Width	≤90mm	≤120mm	≤180mm	≤270mm	≤350mm	≤440mm	≤530mm
Weighing Belt'size	Length	250mm	300mm	400mm	450mm	620mm	1000mm	1200mm
	Width	120mm	150mm	210mm	300mm	400mm	500mm	600mm
Rejection		Air Blowing/Push Lever/Swing Arm/Flap/Sinking Conveyor
Controlling System		High Seep A/D Sample Controller
Working Environment		Temperature:0ºC~40ºC,Humidity:30%~95%

Optional Rejection
Company ProfileEstablished in 2005, Dongguan Coso Electronic Tech Co., Ltd. is a professional detection equipment manufacturer. The factory is located in Dongguan, China, with convenient transportation access, covers an area of 6000 square meters.
We concentrate on industrial metal detector, metal separator, checkweigher, weight sorting machine, X-ray inspection system and needle detector. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. With the strong ability of customization, we can provide professional solution to meet customers' requirements with competitive price. The machine is easy to operate because of modular design and friendly HMl.We have professional engineers and experienced workers, which guarantee the quality, stability of equipments.
We warmly welcome customers to cooperate with us. lf you are interested in our machines, welcome your kind inquiry.
Q1: Are you a manufacturer?
Yes, our factory was established in 2005, we specialize in design and production of detection equipments which have been exported to over 80 countries around the world.
Q2: What kind of service do you provide?
ODM, OEM and OBM.
Q3: How long is your delivery time?
Around 15 working days after receiving your deposit.
Q4: What's your minimum order quantity?
One set.
Q5: Do you accept customization?
Yes, all of our products can be customized according to customer's requirements.
Q6: How is your after-sales service?
Online technical support and instant communication are always available;
Our products have one-year warranty;
You can send people to our company for training;
We can send engineers to your company to help when needed.
