Small Scale Toilet Tissue Paper Making Machine

Product Description

(787mm) New Type Strong Toilet Tissue Paper Making Machine
Solution
1.Technical parameter:

1.output paper	tissue paper/toilet paper ;
2. raw material	waste paper or wood pulp ;
3.capacity	1 t/d;
4. net paper width	950mm;
5.cooper mesh width	1100mm
6.output paper weight	13-30g/m2;
7. rail gauge	1400mm;
8. drive way	adjustable-speed motor;

2.the main structure:
1.cylinder section:
1000mm×1100mm stainless steel cylinder 1set,
300mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38ºC±2.
2.dryer section:
1250mm×1100mm cast iron alloy dyer can 1 set,
350mm×1100mm touch roll 1set,rubber shore hardness90ºC±2. Mechanical pressure device.mechanical scraper device.
300mm×1100mm reeling drum 1 set ,reel stand 2 sets,winding roll 2 sets
3. the pictures of all equipments :

No.	Item

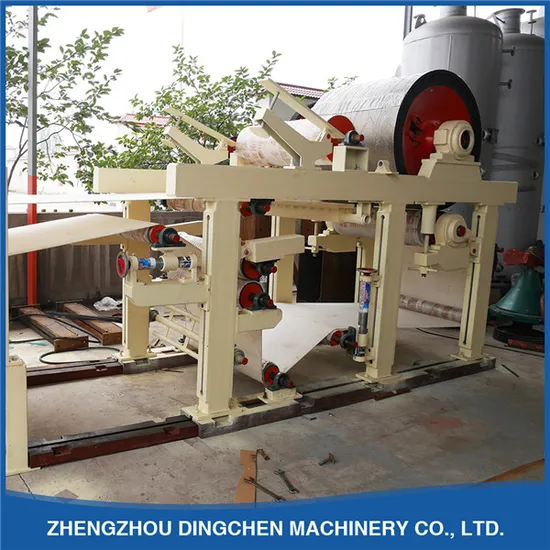

1	787mm single dryer can and single cylinder mould toilet paper machine.
2	exhaust hood of dryer can
3	500mm axial-flow ventilator
4	33roots vacuum pump
5	Vacuum box
6	Frequency conversion controlling cabinet
7	0.3cm Air pump
8	Walking table
9	0.5T vertical boiler(burn coal)
10	787mm automatic rewinding &perforating machine
11	Type 450 tissue paper cutting machine
12	1.5m3High consistency hydrapulper
13	0.9m2 High frequency vibrating screen
14	Bleacher (include drive part)
15	250mm single disc pulp refiner
16	500mm Thruster
17	0.5m3Centrifugal screen
18	FRP sand remover
19	4 inch Pulp pump
20	Electrical operation cabinet

Zhengzhou Dingchen Machinery Co., Ltd. is specialized in handling the businessof paper machine etc. The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation! we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
contact & negotiate!!! Perfect service: 1.technical consultation 2.Plant design 3.installation and test run 4.training engineers and workers 5.good and long time after-sale service The business process 1.send your requirements:raw material,capacity,paper grammage 2.we make the solution to you 3.come visit and negotiate 4.sign contract 5.first payment 6.production 7.pay spare money 8.delivery 9.installation ,training,test run 10.production consultlation We have a large scale of products regarding paper machinery, including: A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.) B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.) Meet customers' requirements and exceed customers' expects. We wish to found long-termcooperation with your company
Factory style
Test installation before delivery
