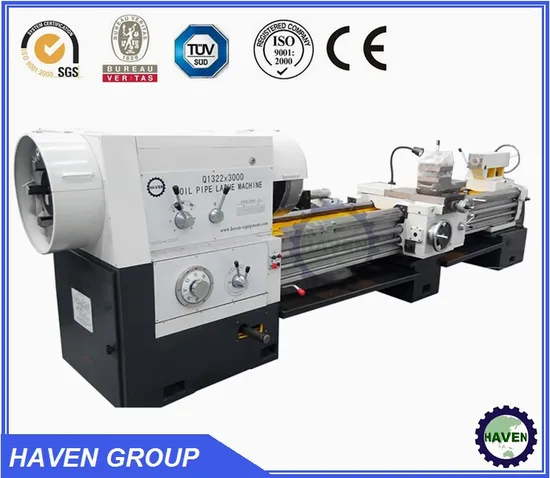

Q1322/3000 Pipe Threading Lathe Machine
| US$99.00-99,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Q1322/3000
Processing Accessory
oil pipe
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Iron Pallet
Specification
Q1322/3000
Trademark
HAVEN
Origin
China
HS Code
84581900
Production Capacity
50 Units/Month
Product Description
Q1322/3000 Pipe Threading Lathe MachineMain specification:
| Type | Unit | Q1319 | Q1322 | Q1327 | Q1332 |
| Max. dia. swing over bed | mm | 630/800 | 630/800 | 1000 | 1000 |
| Max. dia. swing over croos slide | mm | 340/550 | 350 | 610 | 610 |
| Spindle bore | mm | 200 | 225 | 280 | 330 |
| Range of machining pipe thread | mm | 50-190 | 50-220 | 130-270 | 190-320 |
| Max. length of work piece | mm | 1500,3000 | 1300 | 1700 | 1700 |
| Max. tapper of work piece | 1:4 | 1:4 | 1:4 | 1:4 | |
| Max. traverse of tapper device | mm | 750 | 750 | 1000 | 1000 |
| Width of bed | mm | 490/550 | 550 | 7500 | 7500 |
| Power of spindle motor | Kw | 7.5 | 11 | 22 | 22 |
| No. and Range of crosswise feeds | r/min | 22kinds/0.02-0.45 | 32kinds/0.04-0.65 | 40kinds/0.05-1.5 | 32kinds/0.05-0.75 |
| No. and range of spindle speed | r/min | 12steps/24-300 | 12steps/20-460 | 12steps/16-380 | 9steps/7.5-280 |
| No. and range of Lengthways feeds | mm | 26kinds/0.07-1.33 | 32kinds/0.1-1.46 | 40kinds/0.1-3 | 32kinds/0.1-1.5 |
| No. and range of metric thread | mm | 24kinds/1-14 | 21kinds/1-15 | 30kinds/1-30 | 23kinds/1-15 |
| No.and range of inch thread | teeth/inch | 40kinds/2-28 | 26kinds/1-14 | 27kinds/1-28 | 22kinds/2-28 |
| Screw pitch | inch | 1/2 | 1/2 | 1/2 | 1/2 |
| Saddle rapid traverse | mm/min | 4000 | 2500 | 3740 | 3740 |
| Cross slide rapid traverse | mm/min | 2300 | 200 | 1870 | 1870 |
| Max. traverse of saddle | mm | 1310,2810 | 1110 | 1500 | 1500 |
| Max. traverse of cross slide | mm | 390,490 | 360 | 520 | 520 |
| Max. traverse of turret | mm | 200 | 200 | 300 | 300 |
| Size of tool section | mm | 30x30 | 30x30 | 45x45 | 45x45 |
| Max. rotation angle | ° | +/-60° | +/-60° | +/-90° | +/-90° |
| movement on cross slide dial | mm/scale | 0.05 | 0.05 | 0.05 | 0.05 |
| movement on turret | mm/scale | 0.05 | 0.05 | 0.05 | 0.05 |
| Dia. And type of tailstock quill | mm/mores | 100/m5# | 100/m5# | 140/m6# | 140/m6# |
| Traverse of tailstock quill | mm | 205 | 250 | 300 | 300 |
| Cross movement of tailstock | mm | +/-15 | +/-15 | +/-25 | +/-25 |
| Overall dimensions | cm | 365,515x144x139 | 330x145x150 | 460x220x152 | 500x210x160 |
| Net weight | kg | 4440,5290 | 4500 | 10000 | 11500 |
| Chuck | 4-jaw 520 | 4-jaw 520 | 4-jaw 800 | 4-jaw 800 |
